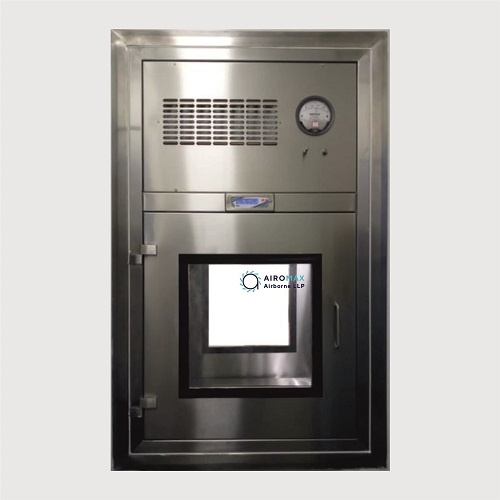

Dynamic Pass Box

We are a prominent pass box manufacturer offers Static and Dynamic Pass-Box used in Pharmaceutical to transfer Material and helps to maintain class between to area. It is a between to different area.

Dynamic pass box acts like a laminar flow unit. Clean air enters the pass box and blocks the contaminants to enter. It consists of interlocked doors on both sides and thus prevents the machine environment from getting polluted. The pass box machine consists of Re-circulated filtration system and is designed according to GMP guidelines.
Dynamic Pass Boxes are used to pass through materials from an uncontrolled environment to a controlled environment. A Static Pass Box should never be used to transfer material between a clean room and a non-clean room.

FEATURES ○     Design acc. to GMP Guidelines easy to clean and to disinfect ○     Doubled Skin Cabinet with Doors and Toughened Glass ○     Cabinet Fabricated in SS 304/316 Structure ○     Re-Circulated Filtration System ○     Electro Magnetic interlocking System ○     HEPA filter H14 filter for supply air and exhaust air ○     G-4 Grade Pre-Filter With SS 304 Flange ○     Air velocity: 0.45 ± 0.05 mps (90 ± 20FPM) Below Six Inch of Grill ○     Magnehelic Differential pressure gauge ○     Centrifugal type Air blower with Speed Variable ○     Measuring system for pressure differential and volume flow or air velocity (if required) ○     Pre-Installed White and UV Germicidal Light ○     Feather Touch controller for Blower/Light/Pressure Display ○     DOP Port/Atmospheric Nozzles ○     Sound Level Minimum 65db On Scale ○     Power Supply Single Phase 220V 50 Hz

OPTIONAL ACCESSORIES ○     Digital Pressure Gauge with Alarm Hour Meter ○     Support Stand for mounting the Pass Box
APPLICATIONS ○     Medical implant ○     Pharmaceutical industry ○     Educational institution ○     Vaccine manufacturers ○     Electronic industry ○     Food processing industry ○     Chemical research laboratories ○     Semiconductor production
