We are leading Fuel Injection Internal Gear Pump manufacturer and supplier. Internal Gear Pump are Positive Displacement pump.
We are leading Fuel Injection Internal Gear Pump manufacturer and supplier.

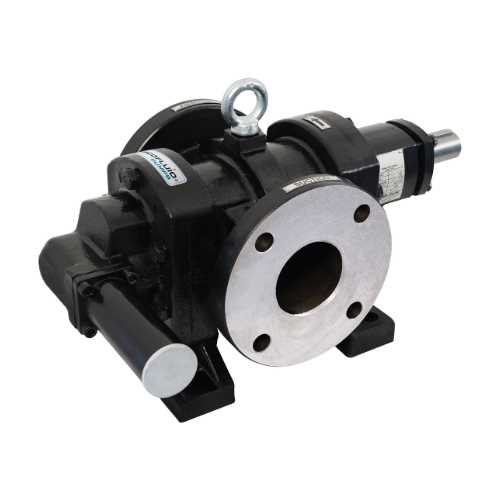

Fuel injection Internal Gear Pump is high precision and fuel pressuring type positive displacement internal gear pump which prepared by graded cast iron. These nitrated gear, shafted rotor give better performance with closed tolerance to give long life.These pumps are self priming type produces maximum, vacuum determined by the cavity between the gear teeth. These pumps modified profile teeth cutting to give accurate capacity with in the pressure range. These pumps are capable to run liquid up to 500 CST viscosity and up to temperature 150ºc. The sealing is done with mechanical seal to ensure zero leakage.
The suction and delivery connections are available in 3/8",1/2",3/4"and 1" size. Pump come in a capacity Range of 60 LPH to 6000 LPH with operating pressure up to 35 kg/cm², yet for continuous duty maximum recommended pressure is 30kg/cm². These pumps can also be used at 2800 RPM. The capacity will have approx double of normal duty condition. These pump can be run both clock and anti clock direction as per requirement.Material of Construction
Part | Material For FIG |
Body | IIS.210 FG 220 C.I. Grade |
Eccentric | IIS.210 FG 220 C.I. Grade |
Idler Gear | SAE-8620 |
Rotor shaft | SAE-8620 |
Sealing | Mechanical seal |
Piston | EN-8 |
Adjusting Screw | EN-8 |
Spring | Spring Steel |
Feature:- Higher suction lift.
- Self priming pump and Capacity to create vacuum up to 600/650 mm hg

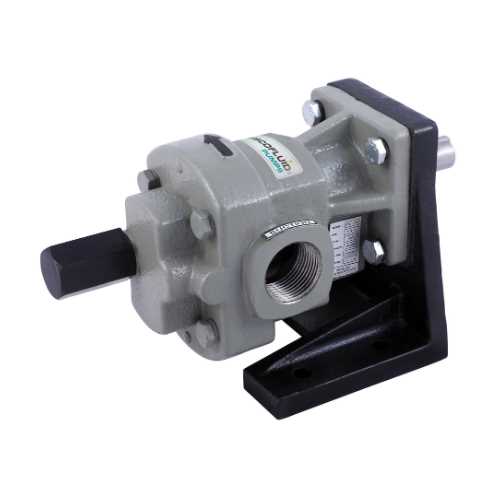

- Flange and Foot mounting option.
- Optionally available in investment casting.
- Zero leakage mechanical seal.
- Maximum temperature up to 200º c.
- Continues duty pump.
- Internal lubrication systems.
- Available with or without built-in pressure relief valve and external by pass.
- Pressure regulator, progressively adjustable.
