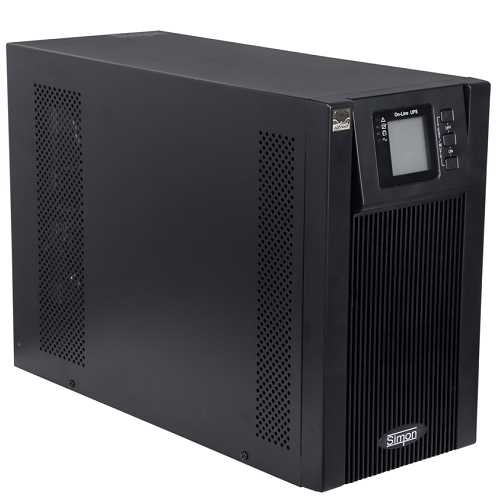

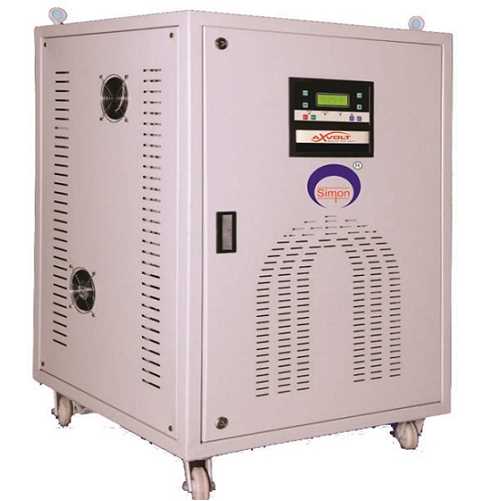

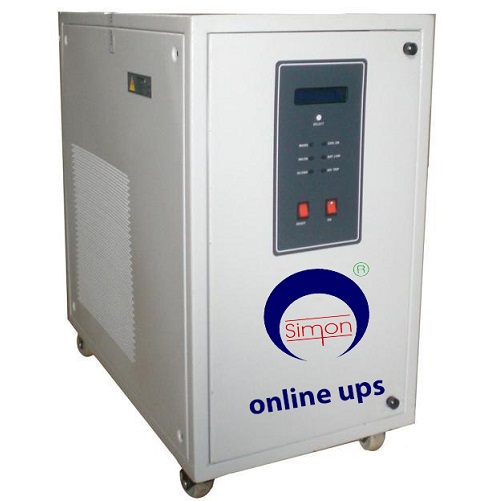

Online Ups

₹ 9500.00  Incl. GST ₹ 8050.85 Excl. GST

Description

Online Ups
Description
• True On -Line Dual Conversion Design.
• Pure Sine Wave Output - Reliable And Constant.
• Built - In Galvanic Isolation Transformer To Isolate All Power Problems,
• True Sine Wave Output With Less Then 3% THD,
• An Extra Wide Input Voltage Control
• Generator Compatible,
• Audible Warning Alarms.
• All Necessary Protections Like Short Circuit, Thermal Battery Low/High,Mains High/Low, Output High/Low, Overload.
• Six Pulse Charger , Charging Current Settable For Higher Back Up.
• Efficiency > 85%
• Static Bypass Switch (Optional).
• Wecb, SNMP And Telnet Monitoring(Optional)

Contact Address:
G-6, Shayona Estate, Near Memco Cross Road Naroda Road, Near Memco Cross Road, Naroda Road, Ahmedabad-380025, Gujarat, India


Minimum Order Quantity: 1
1 Pack contains : 1 Unit

Specification:

Type3 Phase Input -3 phase Output1 Phase  Input - 1 Phase Output
TechnologyDsc Based Double Conversion Online Ups System With True Galvanic Isolation
Capacity10 kva  15kva   20 kva  25 kva  30 kva  40 kva     50 kva5 kva 7.5 kva 10 kva
INPUT
NO.OF PHASE3Phase  - 5 Wire With Neutral and Earth1 Phase - 3 Wire With Neutral And Earth
Voltage Range310v -480 Volts AC160V -280 Volts AC
input Frequency Range45 to 55 HZ.45 to 55 Hz.
OUTPUT
Power8000W   12000W    16000W   20000W   24000W   32000W 40000W4000W  6000W  8000W
Load PF Range0.8 Lagging0.8 Lagging
Phase3 Phase - 5 Wire With Neutral Abd Earth1 Phase - 3 Wire With Neutral Abd Earth
Output WaveFromPure Sine WavePure Sine Wave
Voltage 415  +  1%220  +  1%
Frequency50Hz + -0.1%50Hz + -0.1%
Load Crest Factor3;13;1
Output Voltage THD<=3% On Linear<=3% On Linear
Loading Capacity110% For 2 Minutes110% For 2 Minutes
Transient recovery+  4 % Under Full Load Change And Corrected And Within 1 Cycles
BATTERIES /CHARGERSIX PULSE CHARGERSMPS CHARGER
No.Of 12V Batteries3015
Voltage360 V DC180 V DC
Charging Current1 Amp To 10 Amp1 Amp To 10 Amp
GENERAL
IndicationLCD Panel & LEDLCD Panel & LED
AlarmMains Failure, Battery Low, Over Load, Short Circuit
ProtectionShort Circuit, Thermal, Battery Low/ High, Mains High/Low, Output High/Low, Overload
CoolingForced Air CoolingForced Air Cooling
Ups Efficiency>85%>85%
Operating Temperature0-40 C0-40 C
Operating Humidity95% Condensing95% Condensing
Accoustic Noise<55 Db At 1 Meter<55 Db At 1 Meter


SELLER: Dishant Electronics

Online Ups

Product code (MPN): ITB-50F98656
Availability:In Stock
₹ 9500.00  Incl. GST ₹ 8050.85 Excl. GST
  • Description
    Online Ups
    Description
    • True On -Line Dual Conversion Design.
    • Pure Sine Wave Output - Reliable And Constant.
    • Built - In Galvanic Isolation Transformer To Isolate All Power Problems,
    • True Sine Wave Output With Less Then 3% THD,
    • An Extra Wide Input Voltage Control
    • Generator Compatible,
    • Audible Warning Alarms.
    • All Necessary Protections Like Short Circuit, Thermal Battery Low/High,Mains High/Low, Output High/Low, Overload.
    • Six Pulse Charger , Charging Current Settable For Higher Back Up.
    • Efficiency > 85%
    • Static Bypass Switch (Optional).
    • Wecb, SNMP And Telnet Monitoring(Optional)

    Contact Address:
    G-6, Shayona Estate, Near Memco Cross Road Naroda Road, Near Memco Cross Road, Naroda Road, Ahmedabad-380025, Gujarat, India


    Minimum Order Quantity: 1
    1 Pack contains : 1 Unit

    Specification:

    Type3 Phase Input -3 phase Output1 Phase  Input - 1 Phase Output
    TechnologyDsc Based Double Conversion Online Ups System With True Galvanic Isolation
    Capacity10 kva  15kva   20 kva  25 kva  30 kva  40 kva     50 kva5 kva 7.5 kva 10 kva
    INPUT
    NO.OF PHASE3Phase  - 5 Wire With Neutral and Earth1 Phase - 3 Wire With Neutral And Earth
    Voltage Range310v -480 Volts AC160V -280 Volts AC
    input Frequency Range45 to 55 HZ.45 to 55 Hz.
    OUTPUT
    Power8000W   12000W    16000W   20000W   24000W   32000W 40000W4000W  6000W  8000W
    Load PF Range0.8 Lagging0.8 Lagging
    Phase3 Phase - 5 Wire With Neutral Abd Earth1 Phase - 3 Wire With Neutral Abd Earth
    Output WaveFromPure Sine WavePure Sine Wave
    Voltage 415  +  1%220  +  1%
    Frequency50Hz + -0.1%50Hz + -0.1%
    Load Crest Factor3;13;1
    Output Voltage THD<=3% On Linear<=3% On Linear
    Loading Capacity110% For 2 Minutes110% For 2 Minutes
    Transient recovery+  4 % Under Full Load Change And Corrected And Within 1 Cycles
    BATTERIES /CHARGERSIX PULSE CHARGERSMPS CHARGER
    No.Of 12V Batteries3015
    Voltage360 V DC180 V DC
    Charging Current1 Amp To 10 Amp1 Amp To 10 Amp
    GENERAL
    IndicationLCD Panel & LEDLCD Panel & LED
    AlarmMains Failure, Battery Low, Over Load, Short Circuit
    ProtectionShort Circuit, Thermal, Battery Low/ High, Mains High/Low, Output High/Low, Overload
    CoolingForced Air CoolingForced Air Cooling
    Ups Efficiency>85%>85%
    Operating Temperature0-40 C0-40 C
    Operating Humidity95% Condensing95% Condensing
    Accoustic Noise<55 Db At 1 Meter<55 Db At 1 Meter
