Mechmatics Engineering Private Limited

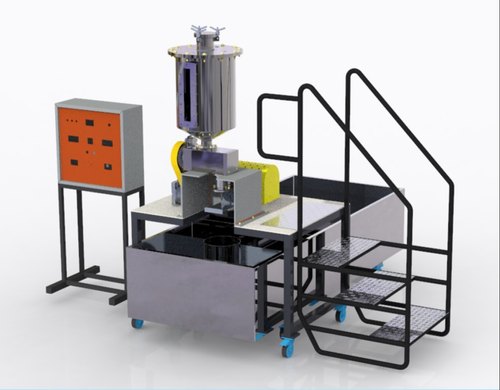

Slurry Jet Test Rig

₹ 750000.00  Incl. GST ₹ 635593.22 Excl. GST

Description

This test equipment is capable of producing a jet of slurry to strike on test specimen for eroding material from its surface under constant velocity and flux distribution throughout the duration of test.
Material SS
Flow Rate Variable
Test Component Metal Sample
Design Speed Variable
Pipe Diameter Variable Nozzle for Jet
Usage/Application Laboratory Equipment
This test equipment is capable of producing a jet of slurry to strike on test specimen for eroding material from its surface under constant velocity and flux distribution throughout the duration of test. A nozzle is used to direct slurry with velocity on to the specimen; nozzle is made of carbide material with length to diameter ratio adequate to achieve an acceptable particle distribution in the stream. Two sizes of nozzles are used their inner diameter are Ø3 & Ø 4mm and length is constant at 50mm, the erosion of nozzle to be monitored so that not to allow more than 10% variation on inner diameter.  A positive displacement pump delivers uninterrupted flow of water Variable, by operating the pump at different speeds. The velocity of water jet stream is determined by measuring the flow rated different flow rates are obtained.  A well-controlled feeding arrangement is provided to discharge uniform flow of particles into water stream. By controlling the wheel speed the desired Variable cc/min of particle flow rate is achieved.  The specimen for test is placed at a distance of 50mm from the tip of the nozzle; the specimen holder can be indexed to different angles for changing the angle impingement. Jet Velocity: Variable as per need
Erodent Concentration: Variable as per need
SELLER: Mechmatics Engineering Private Limited

Slurry Jet Test Rig

Product code (MPN): ITB-749A0B36
Availability:In Stock
₹ 750000.00  Incl. GST ₹ 635593.22 Excl. GST
  • Description
    This test equipment is capable of producing a jet of slurry to strike on test specimen for eroding material from its surface under constant velocity and flux distribution throughout the duration of test.
    Material SS
    Flow Rate Variable
    Test Component Metal Sample
    Design Speed Variable
    Pipe Diameter Variable Nozzle for Jet
    Usage/Application Laboratory Equipment
    This test equipment is capable of producing a jet of slurry to strike on test specimen for eroding material from its surface under constant velocity and flux distribution throughout the duration of test. A nozzle is used to direct slurry with velocity on to the specimen; nozzle is made of carbide material with length to diameter ratio adequate to achieve an acceptable particle distribution in the stream. Two sizes of nozzles are used their inner diameter are Ø3 & Ø 4mm and length is constant at 50mm, the erosion of nozzle to be monitored so that not to allow more than 10% variation on inner diameter.  A positive displacement pump delivers uninterrupted flow of water Variable, by operating the pump at different speeds. The velocity of water jet stream is determined by measuring the flow rated different flow rates are obtained.  A well-controlled feeding arrangement is provided to discharge uniform flow of particles into water stream. By controlling the wheel speed the desired Variable cc/min of particle flow rate is achieved.  The specimen for test is placed at a distance of 50mm from the tip of the nozzle; the specimen holder can be indexed to different angles for changing the angle impingement. Jet Velocity: Variable as per need
    Erodent Concentration: Variable as per need
