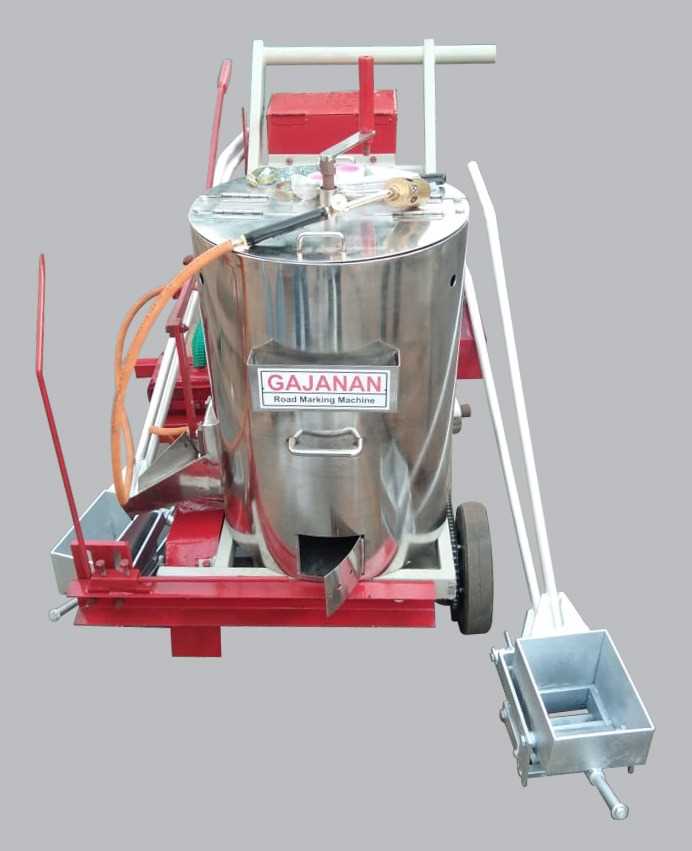

High-Quality Hand Propelled Thermoplastic Road Marking Machine With Rotor Glass Bead System. Model No. : RM-100
Minimum Order Quantity: 1
1 Pack contains : 1 Unit
• 100 Kg. Capacity of Stainless Steel Tank and agitator with vertically mounted
• Front Mounted Pointer Guide adjustable according to laying shoe size.
• LPG Heating System: LPG Supply through heavy-duty ring-type burners for the material tank and screed box.
• Hand Torch for safe lighting of burners
• The Material tank shall have an outer jacket fitted with Dial Type Temperature Gauge 30o C - 400 o C to maintain the uniform Temperature of the material.
• Screed Shoe: Available in 10 cm and 15 cm width provided easy adjustment of thickness adjustment with rotating knob.
• Glass Beads Dispenser: Available in 10 cm and 15 cm width adjustable for the minimum discharge of glass beads @300gms /m2. The dispenser shall be linked via chain drive from wheels of the machine so that quantity of dispensed glass beads is constant irrespective of the speed of the machine and thereby assuring constant quality beads every time at any marking speed.
• Glass Beads Storage Box with window.
• Auto Lockable Rear Wheel capable of straight & fine alignment of markings track locked position or 360-degree swivel.
• Tool Box for toolkit & storage etc.
