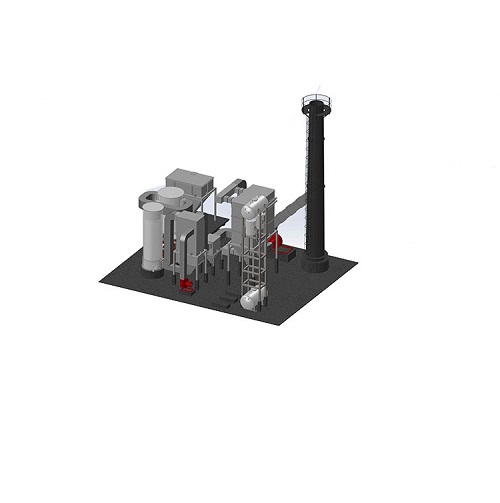

"ParTherm” Multi Solid Fuel Fired 5 Pass Vertical Thermic Fluid Heating System Model With FBC Furnace
• 5 Pass Design ensures better heat utilisation & Ash separation.With Fluidised Bed Combustion furnace design, very high Thermal Efficiency of 80%+-2% can be achieved.
• Automatic Mechanised screw fuel feeding makes fuel feeding OFF & ON when set temperature is achieved & reduced, respectively.
• Micro Processor Based V/F fuel feed drive is used to adjust the rate of fuel feeding as per Plant load requirement.
• Most of the Solid Fuels, including Crushed Coal / Lignite / Agro waste / DOC / Saw Dust can be used in this system.
• Large size Air Pre-Heater / Water ,Pre-Heater, reduces dry flue gas losses and improves the Waste Heat Recovery and increases combustion Air Temperature.
• Radiant Coils installed directly on FBC Furnace makes maximum utilisation of Furnace radiation heat.
• Mechanical Dust Collector arrests the fly Ash from Flue gas, before exhausting to Chimney.
• Ash collection pit is provided below convective coils.
Capacity: 1.5 Million K-cal/hour to 12 Million K-cal/hour
Maximum Temp: Up to 400°C
