Loop Techno System

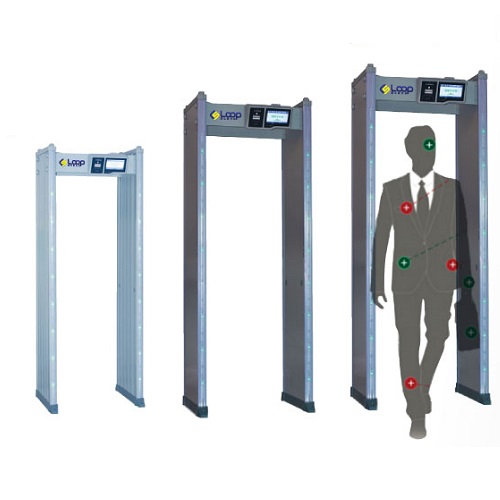

Door Frame Metal Detector

₹ 25000.00  Incl. GST ₹ 21186.44 Excl. GST

Description

Door Frame Metal Detector
Features and Functions
• Multi-zone technology:24 detection zones,adjust sensitivity of each zone individually.
• Touch screen:7-inch HDMI LCD touch screen,easy to operate and understand.
• Mobile connection technology: realize mobile APP remote control(optional).
• IP Grade: IP55 superior waterproof performance(optional).
• Self calibration once power on.
• Self diagnostic, it will inform the user when exit the system.
• Start-stop technology:infrared devices with automatic start-stop technology.
• Adjust the alarm sounds arbitrarily.
• Adjust the working frequency automatically or manually.
• Detection Technology:Even detection technology, no blind spot.
• Professional detection process: built in 60 different detection occasions (providing • upgrade services).
• Working frequency: 100 working frequency.
• Security level: 100 security levels.
• Detection sensitivity of each zone: From 0 to 255 level.
• Multi-alarm sounds to choose-to fit different applications.
• Counter: Record the pass and alarm numbers.
• Query function: The system has real-time information query function.
• Intelligent Standby: The system has intelligent standby operation alerts.
• Working Standby: 16 high-brightness LED indicator on.
• Detection speed: more than 60 people pass and detect in 1 minute.

FUNCTIONS
• Model – Loop Scano-700
• External dimensions – 2240*550*850mm
• Vertical channel size – 2000*700mm
• Packing size – 2330*730*330mm
• NW – 67KG
• GW – 75KG
• Working voltage – AC90V~240V 50/60Hz
• Power – 12W
• Working frequency – 1-100
• Working environment – 20?~65?
• Installation environment – (W) 100cm* (L) 200cm (no metal in this range)
• Highest standard – Metal size≥6g

SELLER: Loop Techno System

Door Frame Metal Detector

Product code (MPN): ITB-1A50D26C
Availability:In Stock
₹ 25000.00  Incl. GST ₹ 21186.44 Excl. GST
  • Description
    Door Frame Metal Detector
    Features and Functions
    • Multi-zone technology:24 detection zones,adjust sensitivity of each zone individually.
    • Touch screen:7-inch HDMI LCD touch screen,easy to operate and understand.
    • Mobile connection technology: realize mobile APP remote control(optional).
    • IP Grade: IP55 superior waterproof performance(optional).
    • Self calibration once power on.
    • Self diagnostic, it will inform the user when exit the system.
    • Start-stop technology:infrared devices with automatic start-stop technology.
    • Adjust the alarm sounds arbitrarily.
    • Adjust the working frequency automatically or manually.
    • Detection Technology:Even detection technology, no blind spot.
    • Professional detection process: built in 60 different detection occasions (providing • upgrade services).
    • Working frequency: 100 working frequency.
    • Security level: 100 security levels.
    • Detection sensitivity of each zone: From 0 to 255 level.
    • Multi-alarm sounds to choose-to fit different applications.
    • Counter: Record the pass and alarm numbers.
    • Query function: The system has real-time information query function.
    • Intelligent Standby: The system has intelligent standby operation alerts.
    • Working Standby: 16 high-brightness LED indicator on.
    • Detection speed: more than 60 people pass and detect in 1 minute.

    FUNCTIONS
    • Model – Loop Scano-700
    • External dimensions – 2240*550*850mm
    • Vertical channel size – 2000*700mm
    • Packing size – 2330*730*330mm
    • NW – 67KG
    • GW – 75KG
    • Working voltage – AC90V~240V 50/60Hz
    • Power – 12W
    • Working frequency – 1-100
    • Working environment – 20?~65?
    • Installation environment – (W) 100cm* (L) 200cm (no metal in this range)
    • Highest standard – Metal size≥6g
