Ventilair India Private Limited

Axial Fans

₹ 10000.00  Incl. GST ₹ 8474.58 Excl. GST

Description

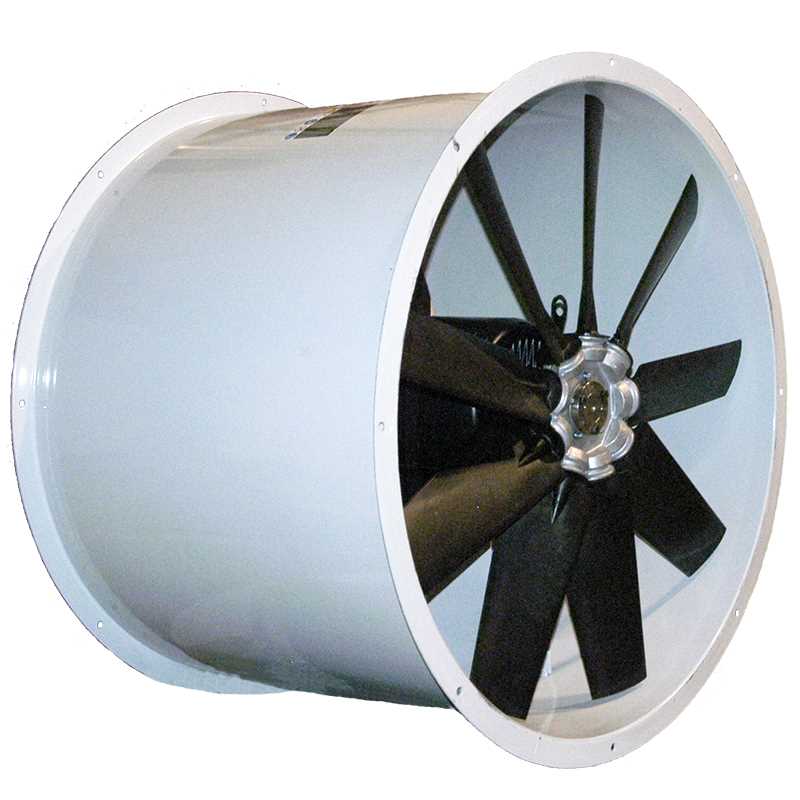

Axial Flow Fans
An Axial Flow Fan draws the air into it and discharge it in the same axial direction, rotating in a round section of duct, to exhaust hot and / or contaminated air from a process or system. Ventilair's Axial Flow Fans can be direct driven with the impeller mounted directly on the motor shaft or can be built driven with the impeller mounted on a separate fan shaft and driven by the motor through bells and sheaves. Axial Flow Fans are ideals for moving large volume of air at low pressures. Ventilair's Axial Flow Fan have adjustable pitch Axial Fans statically and dynamically balanced having wide range of applications in various industries through out the world.
Ventilair manufactures Single Stage and Double Stage Axial Flow Fans (Counter-Rotating) based on application like Mine Ventilation, Power Plants etc.
 APPLICATIONS  TYPES
 PHARMA  DIRECT DRIVE
 CHEMICAL  BELT DRIVE
 MARINE  VANE AXIAL
 VENTILATION  BIFURCATED AXIAL
 SMOKE EXHAUST  PROPELLER AXIAL
 MINES  2-STAGE AXIAL FAN
 TUNNELS  JET FANS
 COOLING  MIX FLOW FANS
 HEATING  ROOF EXHAUST AXIAL
 PRESSURIZATION   --
 AIR   CONDITIONING  --

Model A B C D N Ø Weight (kg) Max Motor* Frame Size
Min Max
 400  400  440  480  480  530 12 10 20 D90S
 450  450  490  530  480  550 12 10 23 D90L
 500  500  540  580  480  600 12 10 25 D100L
 560  560  605  660  480  650 12 10 32 D112M
 630  630  675  730  550  650 12 10 34 D112M
 710  710  755  810  600  650 18 12 45 D112M
 800  800  845  900  600  770 18 12 56 D112M
 900  900  945 1000  770  880 18 12 85 D160M
1000 1000 1050 1100  770  880 24 12 110 D160M
1120 1120 1185 1250  880 1120 24 12 161 D225M
1250 1250 1315 1380  880 1200 24 12 209 D250M
1400 1400 1465 1530  880 1200 32 14 238 D250M


Minimum Order Quantity: 1
1 Pack contains : 1 Unit
