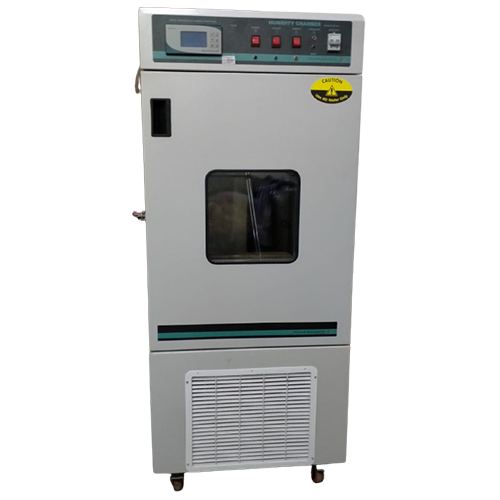

Humidity Chamber

₹ 172450.00  Incl. GST ₹ 146144.07 Excl. GST

Description

We are the leading manufacturer of Humidity Chamber in Ghaziabad.
Material of Construction:
  • Internal Chamber: Made up of Stainless Steel (Grade 304) of 20 SWG
  • Outer Chamber: Made of Mild Steel grey/blue Powder coating. With insulating wall of suitable materials like glass 60 mm thick.
  • Shelves (Perforated): 3 Nos. Stainless Steel, load bearing capacity wire mesh trays.
  • Door: Double Walled Stainless Steel (304) lined door with view window.
  • Working Temp. Range: 10 - 50 °C ± 1°, with L.C. of 0.l° C.
  • Working Humidity Range: 40 - 95 % RH.

Controls:
  • PID based Digital Temp. Controller cum Indicator: 0-100°C ± 0.1°C with pt -100 type sensor.
  • PID based Digital Humidity Controller cum Ind.: 0-100% ± 0.1% RH with Imported sensor.

Additional Feature:
  • Air Circulating: Continuous duty Imported Fan Motor for Air Circulation inside the chamber.
  • Illumination: Fixed on the top.
  • Water tank/capacity: PVC 60 liters, transparent, loafs tank is provided.
  • Wheels: Base fitted with four load bearing wheels of 75 mm dia. size.
  • Power supply: 220/230 V AC, single phase, 50 HZ
  • Twin door: Internal - Air tight polypex/Poly Carbonate External - Thermal insulated min. 5 cm thick with magnetic catchers and latches/locks.
  • Humidification: Humidity created by Imported Ultrasonic transducers.
  • Compressor:
  • Standard make (Emerson) of suitable capacity.
  • Control & display will have the arrangement for locking to protect the set conditions.
  • Comprehensive warranty for one year.
  • Voltage Stabilizer Wall Mounted Voltage Stabilizer of 04 KVA


Minimum Order Quantity: 1
1 Pack contains : 1 Unit
