Orbit Technologies Private Limited

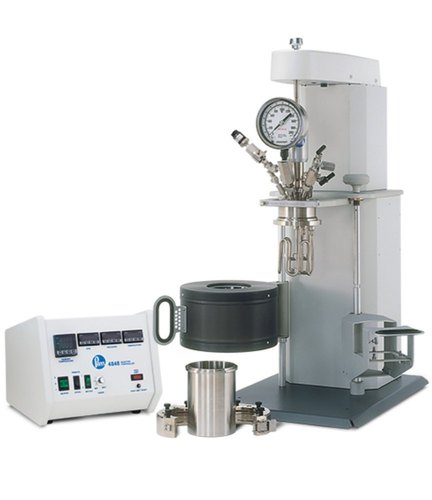

Bench Top Reactors

₹ 585000.00  Incl. GST ₹ 495762.71 Excl. GST

Description

Available in 1 and 2 Liter capacities, these are the largest of the Parr Stirred Reactor Systems that can be operated on a Bench Top. They are available as either a fixed head or moveable head, and with the addition of a flat PTFE gasket working temperatures of 350 Deg C can be achieved.
 Full Description
MaterialStainless Steel


Voltage230 V
Maximum Pressure1900 psi (131 bar) / 2900 psi (200 bar) HP
Maximum Temperature350 Degree C
Vessel MountingFixed Head
Valve Connections1/8" Male NPT
Maximum Torque16 Inch-Pounds
Impeller(s), 6 blades2 (2.28" dia)
Stirrer Motor1/8 hp variable speed
Temperature MeasurementThermowell
Lift MechanismPneumati
Heater Power1000 Watts
Maximum Load12 amps
Cylinder Dimensions4.0 x 5.4 Inches
Cylinder Weight11.3 Pound
Stand Dimensions(W X D)17 x 24 inches
Series4520
SELLER: Orbit Technologies Private Limited

Bench Top Reactors

Product code (MPN): ITB-E38496C3
Availability:In Stock
₹ 585000.00  Incl. GST ₹ 495762.71 Excl. GST
  • Description
    Available in 1 and 2 Liter capacities, these are the largest of the Parr Stirred Reactor Systems that can be operated on a Bench Top. They are available as either a fixed head or moveable head, and with the addition of a flat PTFE gasket working temperatures of 350 Deg C can be achieved.
     Full Description
    MaterialStainless Steel


    Voltage230 V
    Maximum Pressure1900 psi (131 bar) / 2900 psi (200 bar) HP
    Maximum Temperature350 Degree C
    Vessel MountingFixed Head
    Valve Connections1/8" Male NPT
    Maximum Torque16 Inch-Pounds
    Impeller(s), 6 blades2 (2.28" dia)
    Stirrer Motor1/8 hp variable speed
    Temperature MeasurementThermowell
    Lift MechanismPneumati
    Heater Power1000 Watts
    Maximum Load12 amps
    Cylinder Dimensions4.0 x 5.4 Inches
    Cylinder Weight11.3 Pound
    Stand Dimensions(W X D)17 x 24 inches
    Series4520
