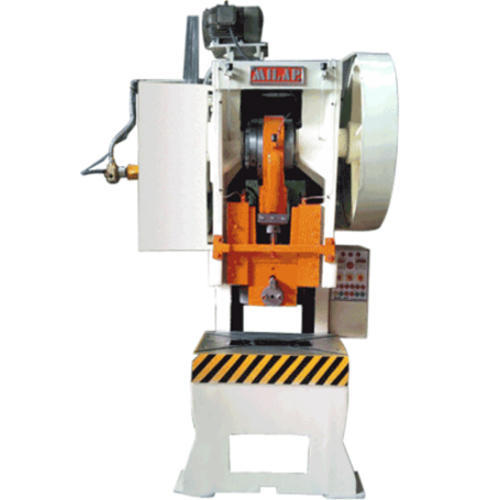

The C-Frame Press line features a slim and clean design, allowing the operator excellent accessibility to the work area from the front as well as the sides. Ideal for rubber molding, straightening, bending, pressing, stamping, and die cushion work, TOX®-C-Frame Presses offer an outstanding price-performance ratio.
Product Details | Capacity | 5 Ton |
| | |
| Area Of Bolster | 350x300 L-RxF-B |
| Shank Hole | 25 |
| No Of Slide Strokes | 55 |
| Main Motor | 1/1440 |
| Motor Pulley Dia | B-2.5 |
| Height from Floor to top ok Bolster | 625 |
| Req.air pressure for pneumatic clutch | 5.5 Kg/Cm2 |
| Bed Openind | 75 |
| Distance Between Bed of Ram | 210 SUAU |
| Slide Stroke Length Adjustable or Fix | 40 |
| Adjustment of Slide | 25 |
| Capacity Tons | 100 | 150 | 200 | 250 | 315 |
| Area of Bolster L-RxF-B | 900x600 | 1000x700 | 1150x800 | 1200x850 | 1350x950 |
| Distance Between Bed of Ram (SUAU) | 455 | 500 | 550 | 600 | 700 |
| Slide Stroke Length Adjustable or Fix | 125 | 125 | 150 | 150 | 175 |
| Adjustment of Slide | 45 | 50 | 60 | 70 | 75 |
| Shank Hole | 50 | 55 | 63 | 65 | 70 |
| No. of Slide Strokes | 40 | 35 | 30 | 30 | 25 |
| Main Motor | 10/1440 | 15/1440 | 20/1440 | 25/1440 | 30/1440 |
| Motor Pulley Dia | B-7 | B-7 | C-8 | C-8 | C-9 |
| Height from Floor to top ok Bolster | 775 | 825 | 825 | 825 | 850 |
| Bed Openind (Dia) | 200 | 225 | 250 | 275 | 300 |
| Req.air pressure for pneumatic clutch ( Kg/Cm2) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
