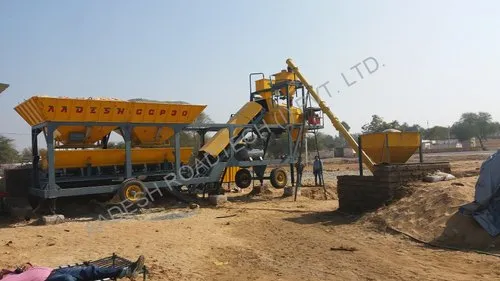

First of its kind giving discharge height of 2 meter from the ground level which makes it useful for using concrete pump as well as transit mixer on site where plant is shifted frequently at various site location to meet the concrete requirement . Fully automatic mobile type batching plant with whole plant assembly on single chassis with tow bar facility. With the help of tractor one can easily move the plant on site and easy to erect and commission the plant as no need to make foundations and control panel is also fitted on the same chassis with internal cabling and inbuilt water tank.
|
| Mixer Type | Pan type mixer/ Planetary mixer/ Twin Shaft mixer |
| Output Capacity | 20 M3/ Hr |
| Total Connected Power | 45 HP |
| Suggested Dg Set | 50 KVA |
| Concrete Discharge Height | 2.1 Meter from the ground level |
| Control Panel | PLC based control panel with internal cabling |
| Material Weighing System | Digital load cell based weighing of aggregates, cement ,water and additive |
| Main Mixer Drive | 20 HP |
| Material Storage System | 2 x 2 Cross bin feeder |
| Material Storage Capacity | 12 M3 |
| Country of Origin | Made in India |
