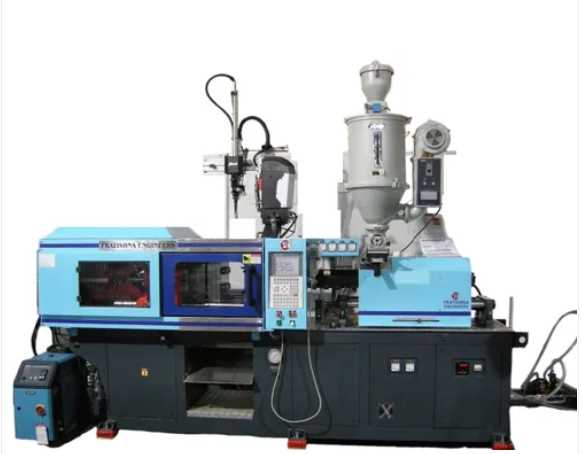

VT series Injection Molding Machines are reliable-Power Efficient-consistent-proven in Indian market for Trouble free long life Operation with minimum Maintenance cost. Available in standard sizes of 50 Tons to 250 Tons with Microprocessor Controls and Proportional Flow / Pressure Hydraulics to ensure repeatability with high production rates
| Material | Mild Steel |
| Frequency | 50 Hz |
| Voltage | 440 V |
| Country of Origin | Made in India |
| Screw Diatemer | 38 mm |
| Screw L/D Ratio | 18:01 |
| Max. Swept Volume | 198 Cub.cm |
| Max. Shot Weight (PS) | 180 Gms |
| Max. Injection Pressure | 1626 Kg / cm2 |
| Rate Of Injection | 97 cc / sec |
| Screw Speed | 250 Rpm |
| Nozzle Force | 3 Tons |
| Mould Clamping Force | 90 Tons |
| Mould Clamping Stroke | 300 MM |
| Mould Thickness - Max | 400 MM |
| Max. Day Light Opening | 700 MM |
| Spece Betn. Tie Bars - H x V | 375 x 344 MM |
| Ejector Stroke | 85 MM |
| Ejector Force | 3.5 Tons |
| Servo Driven Pump | 64 LPM |
| Heating Capacity | 7 HP |
| Total Connected Load | 17 HP |
| Tank Capacity | 225 Ltrs |
| Machine Weight | 2.75 Tons |
| Floor Space ( L x W x H ) | 3.9 x 1.25 x 1.75 Mtr |
