The Motwane Manufacturing Company Private Limited

Analogue Transformer Oil Test Set

₹ 375000.00  Incl. GST ₹ 317796.61 Excl. GST

Description

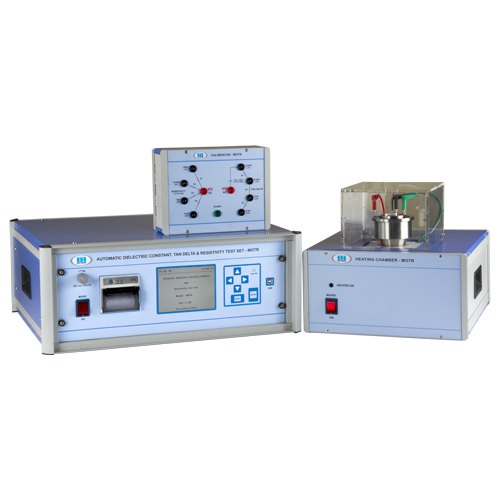

Motwane's MOTR is multifunctional automatic test kit designed for accurate measurement of the Dielectric Constant, TanDelta, Resistivity & capacitance of transformer oil & other electrical insulating liquids. It has preprogrammed test sequences as per various International standards along with customized test sequences as per user requirements. Internal memory for 250 tests provided with PC interface & report generation facility. Inbuilt thermal printer for onsite results. Test cell is designed as per IEC247 with calibrator for onsite calibration of kit.



DisplayLCD
Weight24kg
Voltage2400V AC and 1000V DC
Power Supply110V / 230V 50/60Hz +/-15%
Automatic Resistivity10e9Ohm cm to 101e5Ohm cm
Accuracy Tan Delta+/-1% of rdg +/-0.0001
Dimension510mm X 320mm X 380mm
Temperature20DegC to 150DegC
Electrode Spacing2mm
Frequency50/60Hz
Humidity90% non condensing
Cell Constant620 Nominal
SensorTemp sensor


Frequency Resolution1Hz
KeyboardMenbrane
Ranges Resistivity10e9Ohm cm to 101e5Ohm cm
Ranges Tan Delta0 to 4.0
Resolution Tan Delta1 X 10e-5
Temperature Range20DegC C - 150DegC
Heating ElementInduction Type
PrinterInbuilt Thermal Printer
Memory250 Test
PC InterfaceUSB
SafetyIEC 61010-1 IEC 61326-1
Operating Temperature-10 to 50 Degree Celsius
Test SequenceIEC 60247 VDE 0380 BS 5737 ASTM D924 ASTM D1169 JIS C21012010 IS 602
Constant620 Nominal
Capacitance55pf +/- 1pf
InsulationTeflon (PTFE)
Volume of Oil60ml
Temperature ControlOne Set Point (Max 110degC)


Features
Dissipation Factor, Volume Resistivity, Dielectric Constant, Watt Loss, Oil Test Heating Chamber with Precise Temperature Control, Test Cell According to IEC 60247, Pre programmed & Customized Test Sequences, Inbuilt Thermal, Printer Internal Memory for 250 Test , PC Interface for Report Generation ,Portable Calibrator for Onsite Calibration of Kit, User Friendly Functions & Operation, Sample Oil Auto Drain FacilityAccessories
Test Lead sets, Oil Test cell with 3 terminals, Standard Calibrator with Tan Delta, Capacitance & Resistivity values,Carrying Case.
Request
Callback


Additional Information:
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Maharashtra, India
  • Delivery Time: 6-8 Weeks


Minimum Order Quantity: 1
1 Pack contains : 1 Unit
