Pune Energy Control Devices Pvt Ltd

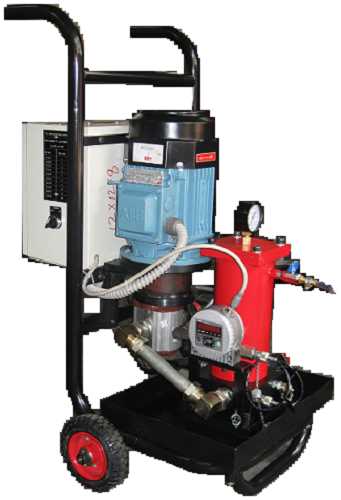

Filtration Trolley

₹ 80000.00  Incl. GST ₹ 67796.61 Excl. GST

Description

Filtration Trolley
Features:
• Oil Filtration Trolley: OFT
• Standard: 0. Duplex: 00
• Seal: NBR, Viton
• Flow: 20 LPM at 1440 RPM, 40 LPM at 1440 RPM
• Electric Motor: 1.1 Kw, 1440 RPM, 1.5 Kw, 1440 RPM
• Filter Size: 330 Size, 660 Size
• Filter Material: Betamicron, Aquamicron
• Filtration Rating: 003 µm Betamicron, 005 µm Betamicron, 010 µm Betamicron, 020 µm           Betamicron, 040 µm Aquamicron
• Sensor: CS Contamination sensor 00, Without Contamination Sensor
• Design: 1X The latest version is always supplied

Technical Specifications
• Type of Pump: Gear Pump
• Max. Flow rate: 20 LPM & 40 LPM
• Operating Pressure: 4 to 5 Bar
• Permiss Suction Pressure: -0.4 bar..... +0.6 bar
• Viscosity Range: 15 to 200 mm²/sec
• Permiss Operating Fluid: Mineral Oil (Other fluid on request)
• Fluid Temp: 25.........80°C
• Ambient Temp: 25.........40°C
• Seal: NBR
• Length Of Electric Cable: 6 Mtrs.
• Length Of Hose: 3 Mtrs
• Hose Connection: To suit ¾”/ 1” BSP connection

SELLER: Pune Energy Control Devices Pvt Ltd

Filtration Trolley

Product code (MPN): ITB-96215BDC
Availability:In Stock
₹ 80000.00  Incl. GST ₹ 67796.61 Excl. GST
  • Description
    Filtration Trolley
    Features:
    • Oil Filtration Trolley: OFT
    • Standard: 0. Duplex: 00
    • Seal: NBR, Viton
    • Flow: 20 LPM at 1440 RPM, 40 LPM at 1440 RPM
    • Electric Motor: 1.1 Kw, 1440 RPM, 1.5 Kw, 1440 RPM
    • Filter Size: 330 Size, 660 Size
    • Filter Material: Betamicron, Aquamicron
    • Filtration Rating: 003 µm Betamicron, 005 µm Betamicron, 010 µm Betamicron, 020 µm           Betamicron, 040 µm Aquamicron
    • Sensor: CS Contamination sensor 00, Without Contamination Sensor
    • Design: 1X The latest version is always supplied

    Technical Specifications
    • Type of Pump: Gear Pump
    • Max. Flow rate: 20 LPM & 40 LPM
    • Operating Pressure: 4 to 5 Bar
    • Permiss Suction Pressure: -0.4 bar..... +0.6 bar
    • Viscosity Range: 15 to 200 mm²/sec
    • Permiss Operating Fluid: Mineral Oil (Other fluid on request)
    • Fluid Temp: 25.........80°C
    • Ambient Temp: 25.........40°C
    • Seal: NBR
    • Length Of Electric Cable: 6 Mtrs.
    • Length Of Hose: 3 Mtrs
    • Hose Connection: To suit ¾”/ 1” BSP connection
