Ronak Engineering

Biomass Briquette Machine

₹ 1700000.00  Incl. GST ₹ 1440677.97 Excl. GST

Description

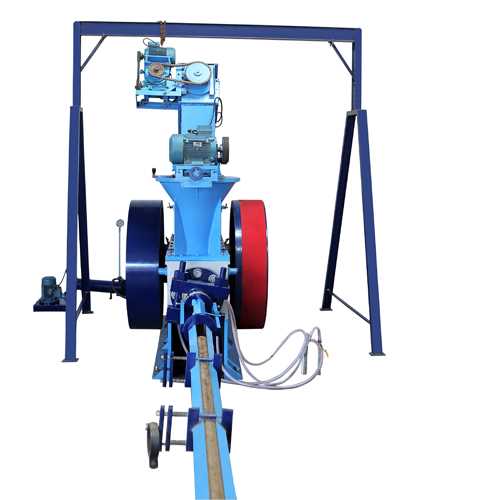

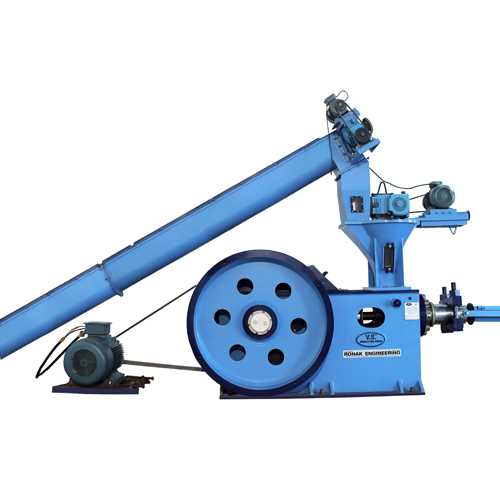

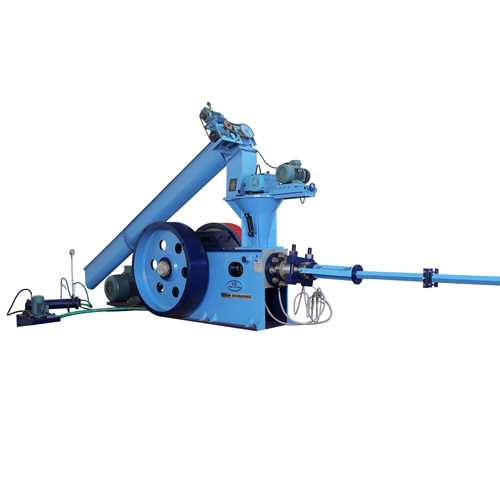

Biomass Briquette Machine
Features:
  1. Acrylic Doom Cover (Visualize the inner portion of Machine)
  2. 75HP Havell’S Electric Motor 1440RPM, 50HZ, 440V Supply, Main Pulley, Nylon Belt
  3. Automatic Conveyer System and Automatic Sensor System
  4. Hard Chrome on Piston up to 7 Filler
  5. Complete Lubrication System & 3HP Havell’S Electric Motor along with Pump. Filter Mechanism & Heat Exchanger System for better cooling lubricating oil pressure gauge
  6. Vertical Feeding Hoper with Screw driven by Gear Box (Elecon/Shree Ram) & 10HP Havell’S Electric Motor
  7. Auxiliary Spares RAM, TAPPER DIE (HCHC), COLLATE, SPLIT DIE & OIL SEAL
  8. Jack for Die Holder Clamp
  9. Cooling line 27 Feet
  10. Complete Operating Panel Board (L&T)
  11. Foundation Bolts (For Machine and Main Motor)
  12. Foundation Frame for Main Motor & Chain Pulley Block
  13. Automatic Reverse and Forward Conveyor System

Screw Conveyor (Material Handling Unit):
  1. Screw Conveyor 20Feet long with 5mm warram thickness, Reduction Gear Box fitted with 3HP Electrical Motor
  2. Slide, Gear and Chain for different speed set up depending on various raw materials of different bulk densities.
  Note: Production Capacity Depending upon Moisture contain and Bulk density of Raw Material.

SELLER: Ronak Engineering

Biomass Briquette Machine

Product code (MPN): ITB-AB31A7D1
Availability:In Stock
₹ 1700000.00  Incl. GST ₹ 1440677.97 Excl. GST
  • Description
    Biomass Briquette Machine
    Features:
    1. Acrylic Doom Cover (Visualize the inner portion of Machine)
    2. 75HP Havell’S Electric Motor 1440RPM, 50HZ, 440V Supply, Main Pulley, Nylon Belt
    3. Automatic Conveyer System and Automatic Sensor System
    4. Hard Chrome on Piston up to 7 Filler
    5. Complete Lubrication System & 3HP Havell’S Electric Motor along with Pump. Filter Mechanism & Heat Exchanger System for better cooling lubricating oil pressure gauge
    6. Vertical Feeding Hoper with Screw driven by Gear Box (Elecon/Shree Ram) & 10HP Havell’S Electric Motor
    7. Auxiliary Spares RAM, TAPPER DIE (HCHC), COLLATE, SPLIT DIE & OIL SEAL
    8. Jack for Die Holder Clamp
    9. Cooling line 27 Feet
    10. Complete Operating Panel Board (L&T)
    11. Foundation Bolts (For Machine and Main Motor)
    12. Foundation Frame for Main Motor & Chain Pulley Block
    13. Automatic Reverse and Forward Conveyor System

    Screw Conveyor (Material Handling Unit):
    1. Screw Conveyor 20Feet long with 5mm warram thickness, Reduction Gear Box fitted with 3HP Electrical Motor
    2. Slide, Gear and Chain for different speed set up depending on various raw materials of different bulk densities.
      Note: Production Capacity Depending upon Moisture contain and Bulk density of Raw Material.
