Description

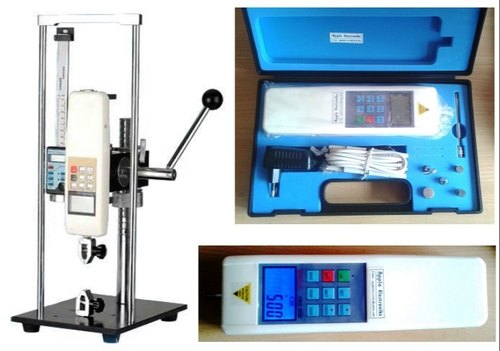

Our Wire Crimp Force Tester is unique & economic instrument for tension/compression testing with good stability, wide application and convenient usage for manual operation. It is used for various application such as force tester, breaking strength,crimp force Testing, Peel off, compression and tensile testing of Fabric, plastic, wire, crimp,yarn, strips & many more. Digital Force measurement devices are attached to measure the maximum Peel adhesive Strength & breaking force in N, Kgf &Lbf.



Features:

• Simple & Hand Pressure operation,

• Able to be used with various kinds of fixtures.

• Compact design & Simple construction.



Specifications:

• Capacity                : 100N (10Kg) / 500N (50.0Kg)

• Accuracy               : 0.1N / 0.01kg / 0.02lb;

• Units                     : N, Kgf, Lbf

• Traveling Length   : 200mm / 400mm(Optional)

• Data Output                    : RS232 communications



Power/Air  : 220/110 V   50/60 Hz

Weight       : 20 Kg        Dimensions         : 450 x 400 x 700 mm(LxWxH)

Minimum Order Quantity: 1
1 Pack contains : 1 Unit
