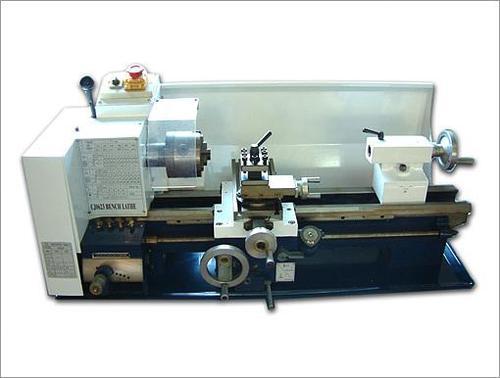

This precision mini lathe is designed to perform various tapes of processing jobs.Counterface
MAIN SPECIFICATIONS
|
Distance between centers
|
500/750mm
|
|
Swing over bed
|
230mm
|
|
Swing over cross slide
|
135mm
|
|
Spindle taper
|
MT3
|
|
Tailstock taper
|
MT2
|
|
Chuck diameter
|
100mm
|
|
Spindle bore
|
20mm
|
|
Cross slide travel
|
125mm
|
|
Tool slide travel
|
48mm
|
|
Range of metric threads
|
0.5-3mm
|
|
Range of imperial threads
|
8-56TPI
|
|
Spindle accuracy
|
0.01mm
|
|
Spindle speed
|
100-1800RPM(50Hz)/120-2160RPM(60Hz)
|
|
Power of motor
|
750W
|
|
Voltage/Frequency
|
230V/50Hz or 120V/60Hz
|
|
Net weight /Gross weight
|
105Kg/135Kg 120Kg/150Kg
|
|
Packing size
|
1055/1300/565×575mm
|
Minimum Order Quantity: 1
1 Pack contains : 1 Unit
