Description

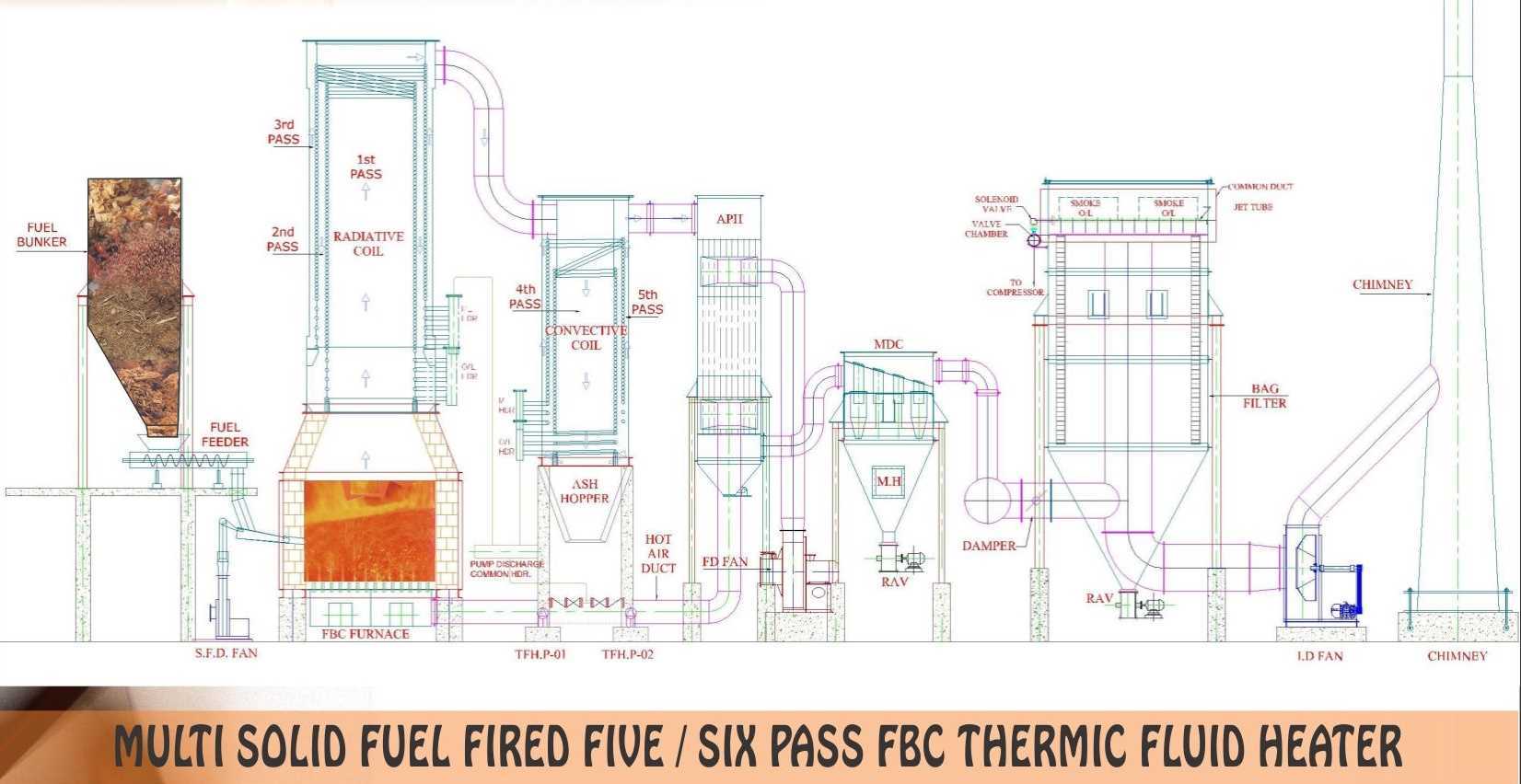

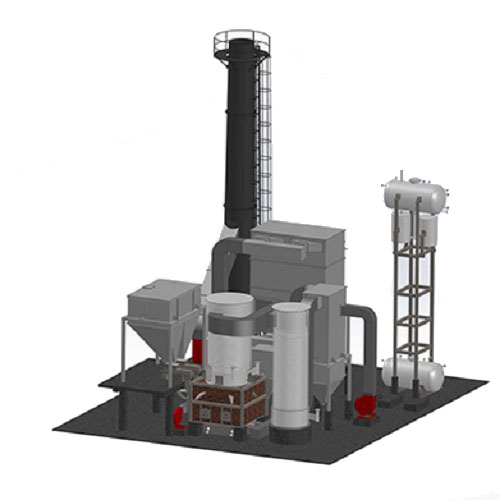

ParTherm” Multi Solid Fuel Fired 5 Pass Vertical Thermic Fluid Heating System Model With FBC Furnace.
• 5 Pass Design ensures better heat utilisation & Ash separation.
With Fluidised Bed Combustion furnace design, very high Thermal Efficiency of 80%+-2% can be achieved. • Automatic Mechanised screw fuel feeding makes fuel feeding OFF & ON when set temperature is achieved & reduced, respectively. • Micro Processor Based V/F fuel feed drive is used to adjust the rate of fuel feeding as per Plant load requirement. • Most of the Solid Fuels, including Crushed Coal / Lignite / Agro waste / DOC / Saw Dust can be used in this system. • Large size Air Pre-Heater / Water ,Pre-Heater, reduces dry flue gas losses and improves the Waste Heat Recovery and increases combustion Air Temperature. • Radiant Coils installed directly on FBC Furnace makes maximum utilisation of Furnace radiation heat. • Mechanical Dust Collector arrests the fly Ash from Flue gas, before exhausting to Chimney. • Ash collection pit is provided below convective coils.

Minimum Order Quantity: 1
1 Pack contains : 1 Unit

Capacity: 1.5 Million K-cal/hour to 12 Million K-cal/hour

Maximum Temp: Up to 400°C
