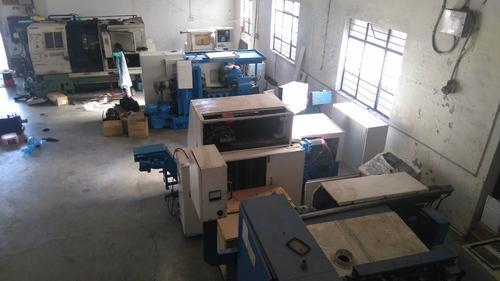

CNC Turning Machine

A CNC turning machine (or CNC lathe) is a computer-controlled machine tool that holds and rotates a workpiece against cutting tools to remove material and shape the part with high precision. In operation, the workpiece is mounted on a rotating spindle while a tool moves along one or more axes to produce cylindrical or complex profiles. Modern CNC lathes often have multiple axes and automatic tool turrets, enabling repeatable, complex machining. These machines produce precise round shapes (outer and inner diameters) and are fundamental in manufacturing components like shafts, sleeves, and fittings.

Type of CNC Turning Machine

Axis configuration: Standard models operate on two axes (X and Z) for turning operations, while advanced models add a Y-axis or secondary spindle and turret. Multi-axis (4- or 5-axis) lathes allow milling and drilling operations in the same setup

Gantry/Orientation: Most lathes are horizontal (bed-mounted), but vertical lathes (vertical spindle) also exist for very large workpieces.

Single vs Double Spindle: Single-spindle lathes have one main spindle; double-spindle lathes have a second spindle for dual-opposite turning or feeding bars through for high-volume production.

Control and Automation: These machines range from fully automated CNC systems (with computer numerical controls) to manually controlled lathes. CNC lathes dominate production due to their ease of setup and repeatability.

Size/Capacity: Classified by swing (maximum diameter), length capacity, and power. Heavy-duty industrial lathes handle large forgings, whereas smaller machines serve tool rooms or prototype shops.

Applications in Various Industries

Automotive and Transportation: Machining engine shafts, gears, wheel hubs and other drive components.

Aerospace: Producing landing gear components, actuators, and turbine engine shafts.

Oil & Gas: Fabricating drill collars, pump shafts, and valve bodies.

Medical and Electronics: Manufacturing small precision parts like screws, pins, dental/orthopedic implants.

General Manufacturing: Any industry that requires turned parts (e.g. bearings, bushings, pulleys). In fact, CNC lathes “are widely used across various industries, including oil and gas, automotive, aerospace, medical, electronics, mining, power generation, steel and paper mills, and shipbuilding”

Material Selection Considerations

• Frame and Bed: Often made of cast iron or steel for rigidity and vibration damping. Cast iron beds resist deformation under heavy cutting loads
• Spindles and Turrets: High-strength alloy steels (case-hardened or induction-hardened) for durability under high RPM and load.
• Guideways and Ball Screws: Hardened and ground alloy steel for accuracy and wear resistance.
• Tooling: Cutting tools are typically carbide or coated tool steel for high hardness and wear life.
• Corrosion Protection: Components may be finished or coated (e.g. paint or plating) to resist coolant corrosion.
