TECHNICAL SPECIFICATIONS

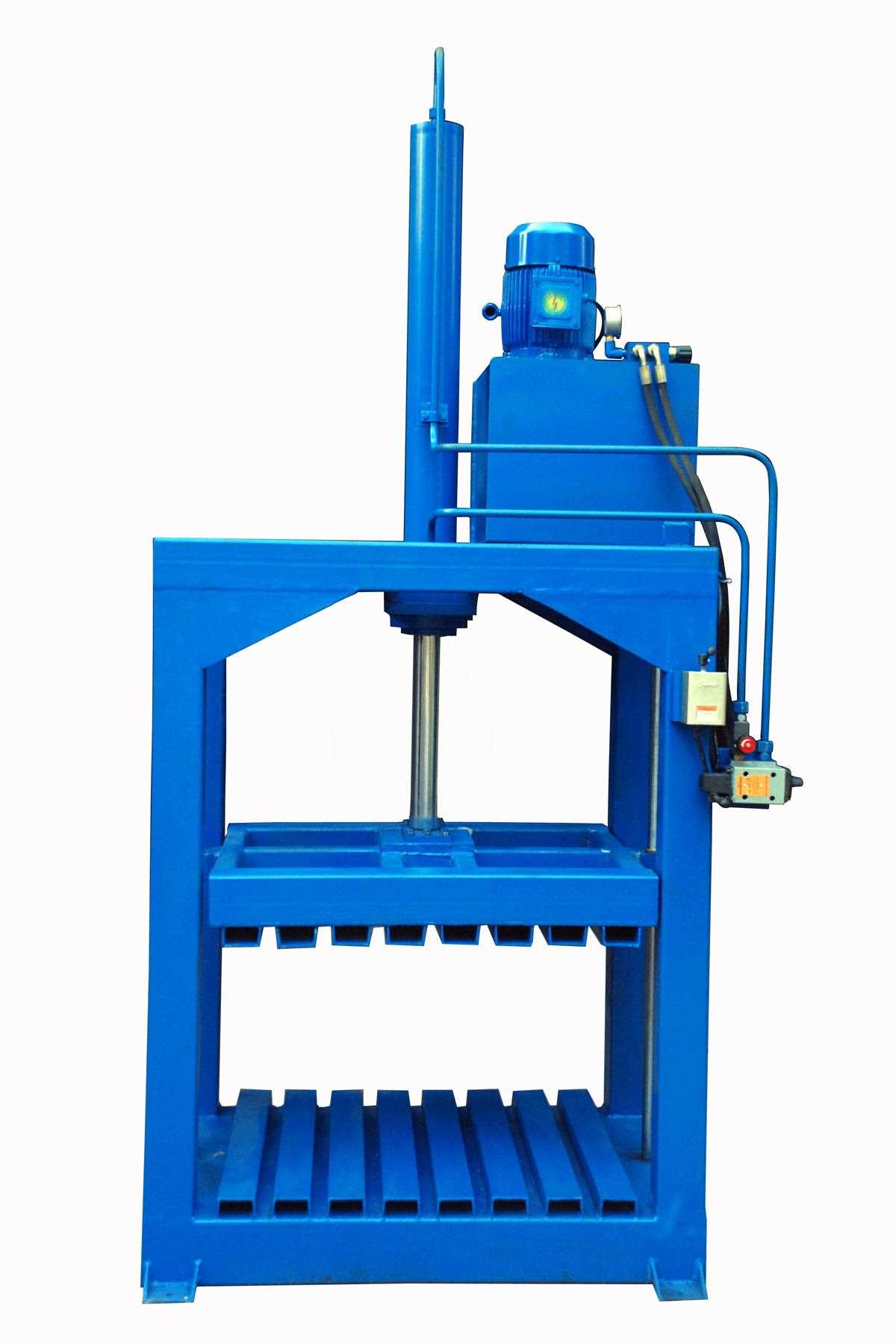

Single cylinder design
1) Hydraulic Pressing Capacity 10 Tons
2) Table Clear Size (Length x Width) 900 mm x 800 mm
3) Max.Opening bale Pressure Plate & Table (Before Pressing) 950mm
4) Min.Opening bale Pressure Plate & Table (After Pressing) 200mm
5) Total Number Of Strapping (Length x Width) 6 X 1
6) Electric AC Motor 3 HP
7) Size Of Machine 2500H x 1125L x 800W mm
8) Oil Tank Capacity 85 Liter
9) Minimum Oil 60 Liter
10) Hydraulic Oil Number EP68 Hydraulic Oil
11) Weight of Machine 750 Kg
