Customised Products

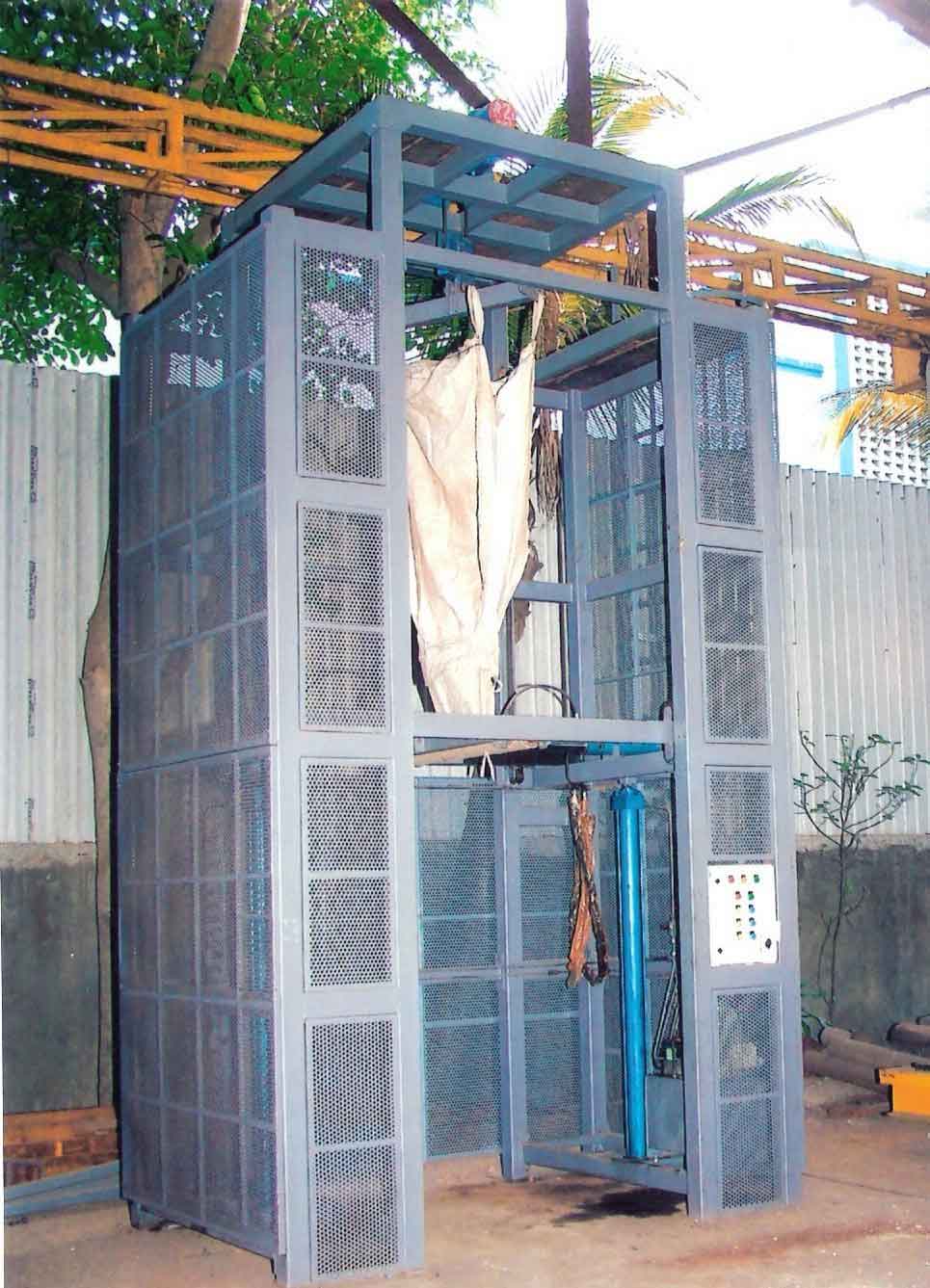

Jumbo Bag Squeezer

The jumbo bag shall be lifted with the help of hoist from front & back side, and brought in the centre by monorail where toad is located at the bottom. The jumbo bag is lifted up over the 2000 lbs toad and is opened, so that the material starts unloading in the toad. The squeezer is provided with two nos. adjustable arms which move up and down with the help of hydraulic cylinder. The adjustable arm is provided with two nos. heavy duty roller which open and close (Travel approx 20") both ways with the help of hydraulic double acting cylinder when the adjusting arms are operated the movement of the jumbo bag is opened and the adjustable arms travel forward till they press the jumbo bag to the required distance and then the adjustable arms travel downwards squeezing the left over material in the jumbo bag into the toad below the bag.

The jumbo bag squeezer shall consist of structure with rollers, hydraulic cylinder drive unit. The squeezer shall be fabricated from M. S. Square pipe suitable cross supports at suitable interval, all bolted construction. The monorail shall be complete with wire rope hoist & trolley of one ton capacity complete with pendant switch. There shall be two nos. adjustable arms on the squeezer, and each arms shall have one no. roller at one end, shall be mounted on the squeezer frame with telescopic cylinder. The frame of the adjustable arm which travels forward and backward by means of hydraulic cylinder operated by hydraulic power pack unit. The hydraulic power pack unit shall be complete with hydraulic pump coupled to electric motor with relief valve and solenoid valve.

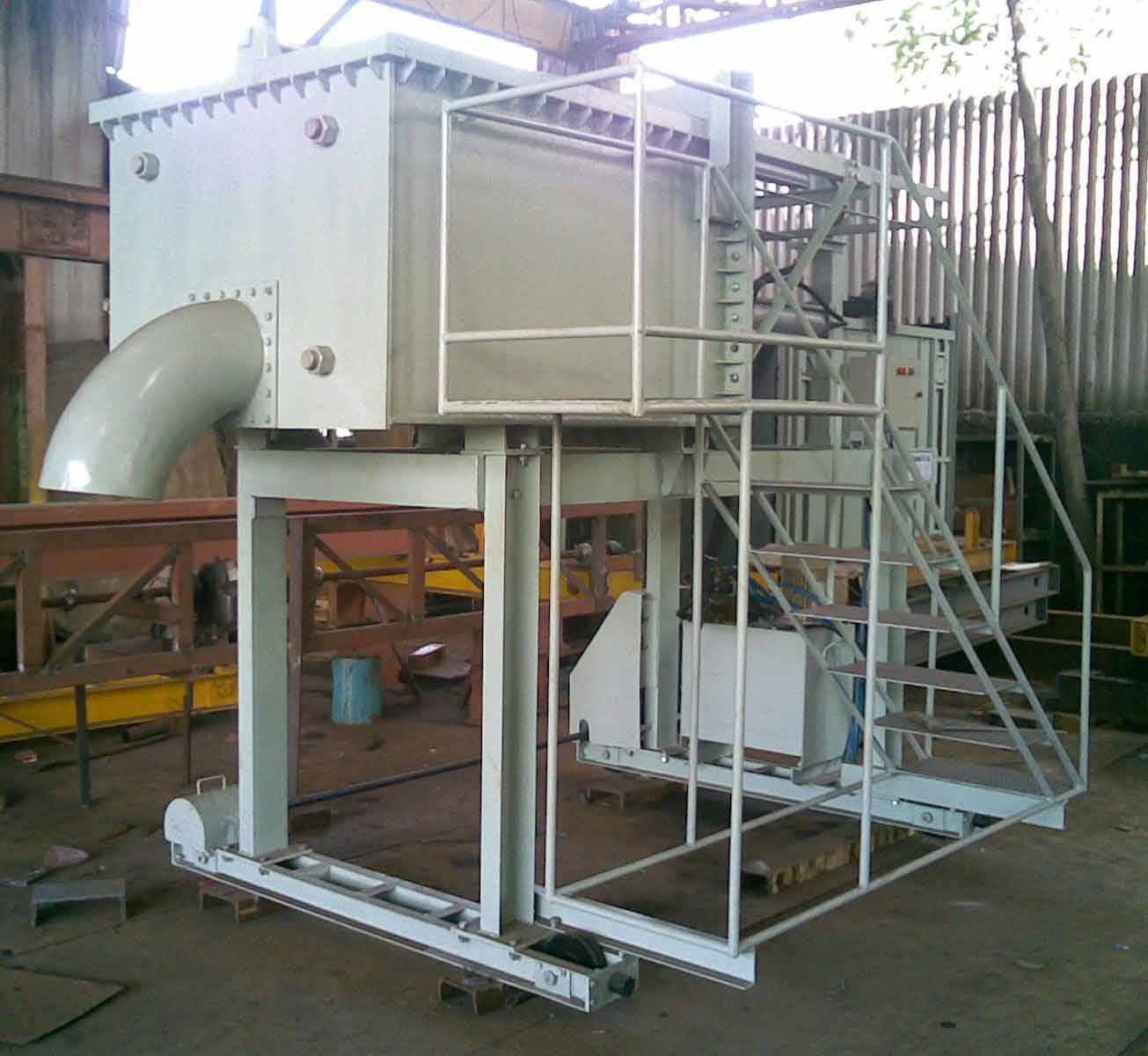

Press-Out System

The press-out system shall be meant for transferring of flush of approx. one ton into your reactor. The press-out system shall be fabricated of M.S. plates with suitable supports of M. S. channels, angles & stiffeners all welded construction. The press-out system shall be closed from all sides. The top shall have a heavy duty M.S. fabricated door operated by hydraulic cylinder. The front shall have opening of approx 300 to 500mm as required for discharge of material. The press-out system shall be complete with hydraulic double acting cylinder of approx 150mm Dia and 1400mm stroke flange type which shall be fitted to the M.S. structure. Suitable supports shall be provided to support the hydraulic cylinder.

The hydraulic cylinder shall be operated by hydraulic power pack unit which consists of electric motor coupled to hydraulic pump, with directional controlled solenoid valve, relief valve, etc. The unit shall be complete with oil tank, air breather, oil filter, etc. The hydraulic power pack unit shall be kept below the hydraulic cylinder.

The press-out system shall be complete with electric control panel which consists of MCB, main contactor, contactor for motor and overload relay. The press-out system shall be painted with two coats of epoxy primer followed by two coats of olive green paint.

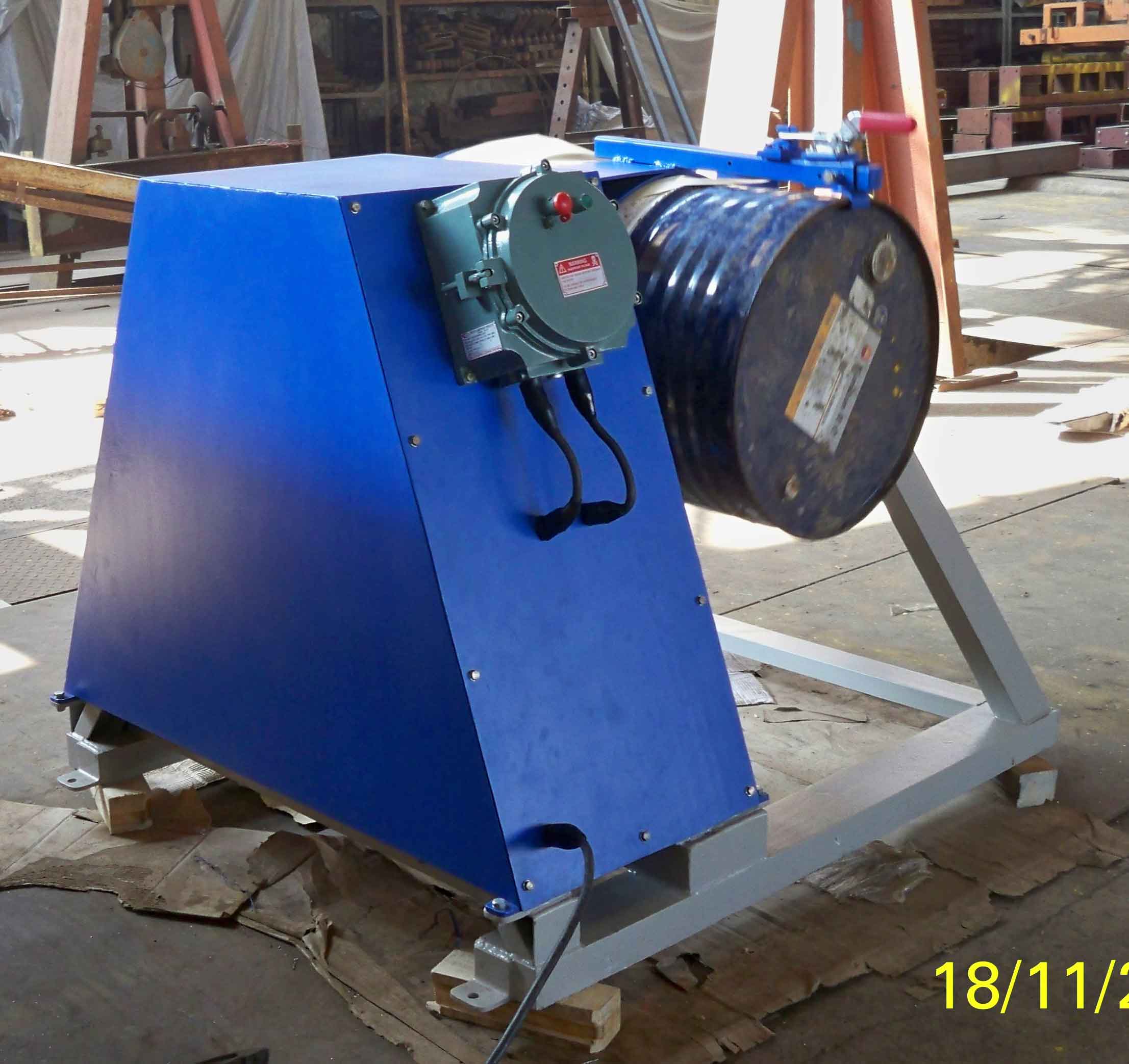

Drum Rotator

We are a renowned manufacturer and supplier of superior quality Drum Rotators. These rotators are designed under the guidance of expert professionals, who make sure to use optimum quality raw material and sophisticated machines. Moreover, these rotators are tested on various parameters so as to ensure their adherence with international standards and norms. Strong construction and high performance are some of the features of the offered products.

Drum Rotator offered comprise machines that find suitability for rotating cable drum. Coming in mild steel fabricated finish, these are hand driven on taper roller as well as ball bearing that comes fitted inside cast iron bell housing so as to ensure smooth rolling movement. Further, the drum rotator is also provided with rotating handle, breaking arrangement as well as clamping plate & tightening bolt to clamp drum. Here, our expertise lies in also delivering these in design/finish specifications as desired by the customers.

Features :
  • Finding suitability for rotating cable drums
  • Featuring mild steel fabricated finish for better durability
  • Comes with breaking arrangement
  • Comes with provision of clamping plate and tightening bolt.

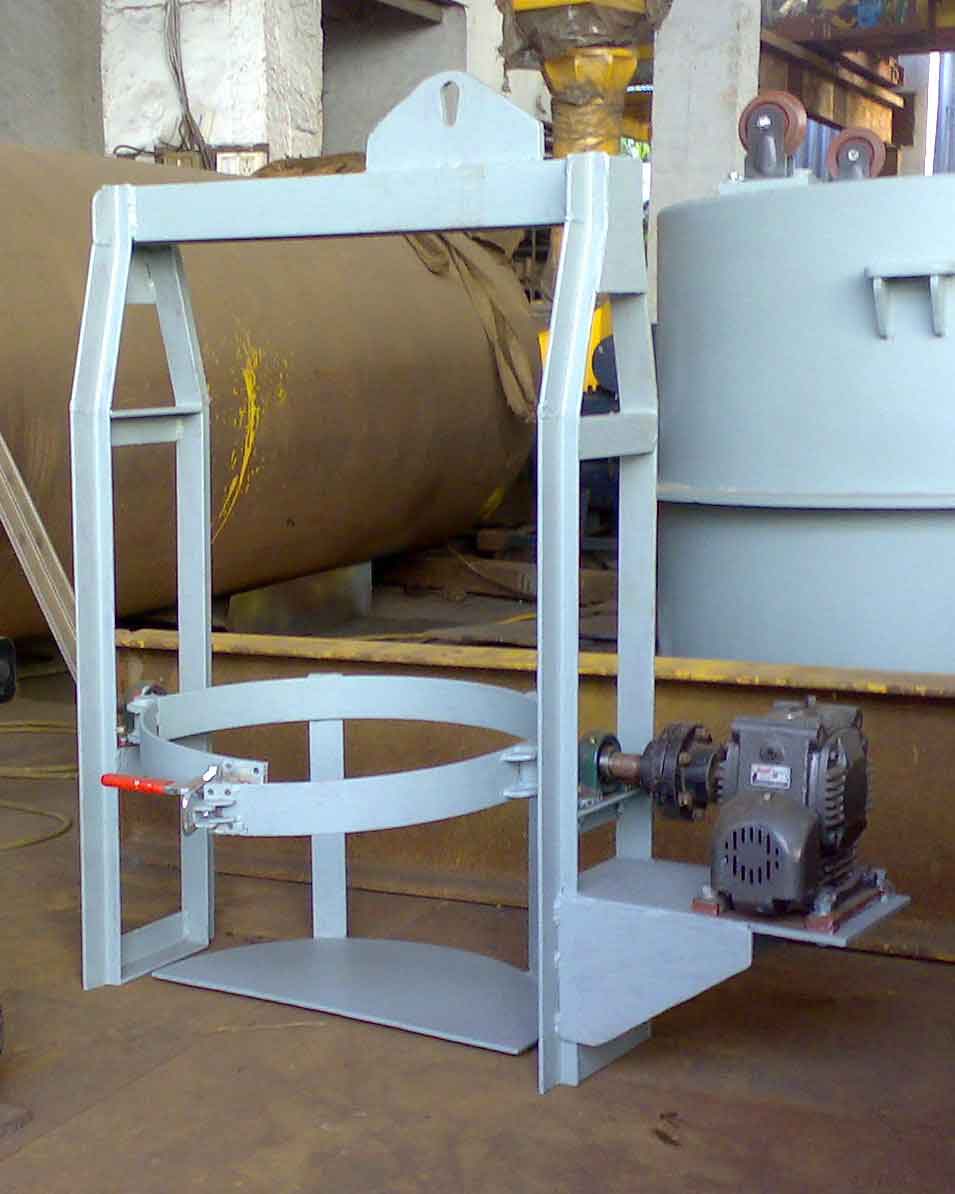

Drum Lifting & Tilting Tackle

We bring forth a range of Drum lifting tackles and Drum tilting tackles, that are specially developed to lift the drums and barrels. Manufactured using premium grade raw material, these tackles are appreciated for accurate dimension, excellent strength and better durability. Our range is capable to handle the load from capacity 100 kg to 150 Tons. Further, we also provide these tackles in customized specifications laid down by our clients.
