Hydraulic Pallet Truck
We have in store a wide range of Hydraulic Pallet Trucks for the customers, as per their specific requirements. These trucks are strictly made in compliance with the international quality standards, using advanced facilities at our state-of-the-art infrastructure. Moreover, we make available these trucks in different capacities, sizes and other specifications to meet varied requirements of the clients in the best possible manner. Our range includes Heavy Duty Pallet Trucks, Stainless Steel Pallet Trucks, Scale Pallet Trucks, Roll Pallet Truck and Scissor Lift Pallet Trucks.

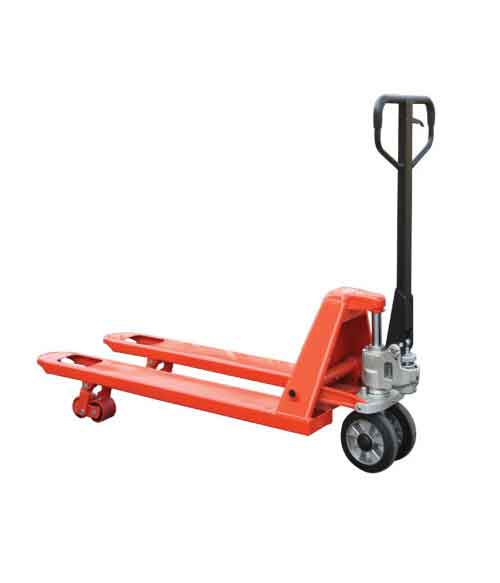

Heavy Duty Pallet Truck
Since the time our company has been formulated we have been the major manufacturer and supplier of Heavy Duty Pallet Truck. These units are made of raw material that is supposed to be the best in the industry. We have the acumen to test these products as the international standards of quality. The customized version of these products are also quite popular among our clients.
HK / AC25
Item/Type | AC25 | ||||||
Capacity Q | kg | 2500 | |||||
Min.fork height h | mm | 85 | 75 | ||||
Max.fork height h1 | mm | 200 | 190 | ||||
Steering wheel | mm | ?200x50 | ?180x50 | ||||
Load roller Single | mm | ?80x93 | ?74x93 | ||||
Load roller Tandem | mm | ?80x70 | ?74x70 | ||||
Size of fork e*s | mm | 160x50 | |||||
Width overall forks B | mm | 450/520/540/685 | |||||
Fork length I | mm | 800/900/1000/1100/1150/1220 |
- Conforms to EN 1757-2
- Special fork length are available 800,900,950,1000,1100,1500,2000,2500,3000mm for different capacity from 1000kg to 3500kg.
- Materials and specification are subject to change without notice.
- Specially designed to lift and transport the widest variety ofloads in stores and warehouse
- The ergonomic noblelift tiller safely protects the operator's hands while working
- Excellent hydraulic lift unit
- Strong, torsion-resistant steel construction
- Load-in/lead-out rollers under the fork tips enable pallets to be entered any kind of pallet
- No routine maintenance at all is needed on the hydraulics unit and bearings
- Important seals made in Germany, which prolong the working time of hydraulic unit
- With different options for fork width and length
- With options for Nylon, Rubber wheel and PU wheels
- Parking brake can be chosen as a special option
- Frame paint is on customer demand

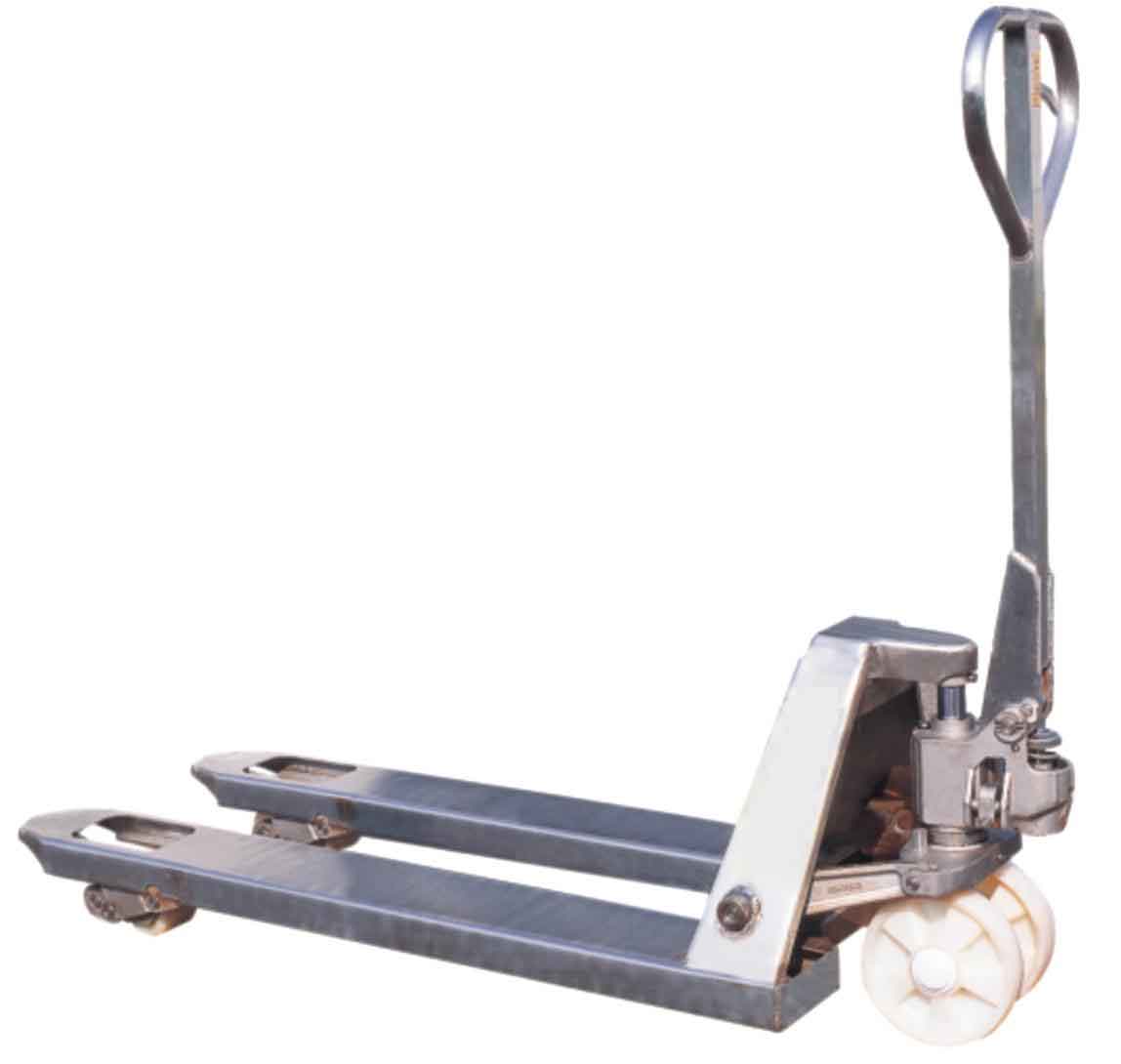

Stainless Steel Pallet Truck
Being the leading names in the industry, we offer our clients functionally efficient array of Stainless Steel Pallet Truck that is acclaimed for high tensile strength and flawless performance. These products are available in different dimensions and sizes and are utilized in different industrial applications. They are corrosion resistant in nature and are available at most reasonable rates.
Item/Type | HK / ACS20H | ||
Capacity Q | kg | 2000 | |
Min. fork height h | mm | 85 | |
Max. fork height h1 | mm | 200 | |
Steering wheel | mm | ?200x50 | |
Load roller Single | mm | ?80x93 | |
Load roller Tandem | mm | ?80x70 | |
Size of fork e*s | mm | 160x60 | |
Width overall forks B | mm | 520 / 540 / 685 | |
Fork length I | mm | 1000/1100/1150/1220 |
- ACS20H/ACS20L
- Stainless
- All parts are stainless including hydraulic pump, fork frame, handle, push rod, Bearing, pin and bolt,etc?
- For use in meat and other food industries, dairy canning and areas where corrosive acids and saline solutions are used
- Fully sealed hydraulic coated pump
- Pressure relief valve/overload valve
- Three position handle-Lift-Neutral-Lower
- Tandem nylon load rollers & steering wheels
- Materials and specification are subject to change

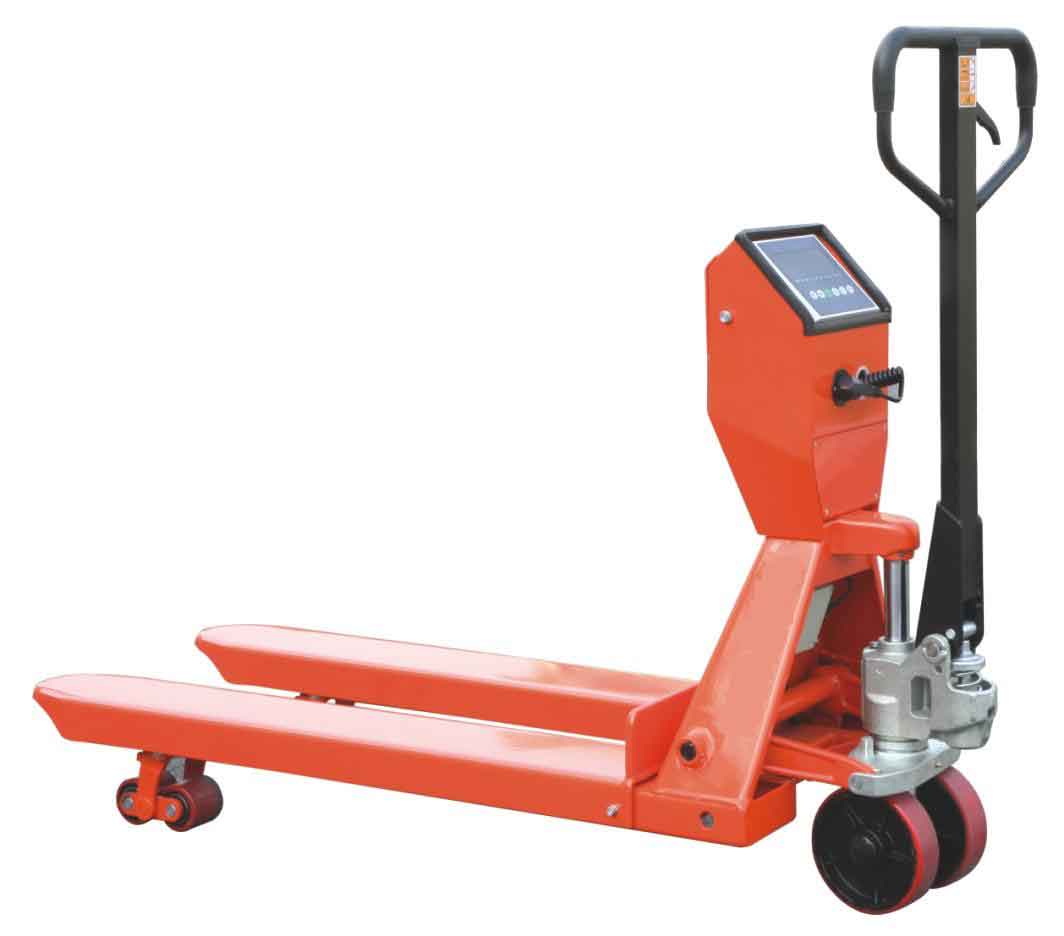

Scale Pallet Truck
We are a well-known manufacturer, supplier and exporter of superior quality Scale Pallet Truck. These trucks are manufactured under the guidance of expert professionals, who hold vast experience in this domain. Moreover, these trucks are tested on various parameters so as to ensure their flawless performance, durability and low maintenance.
Model | HK / SAC-N20H | |||
Capacity Q | kg | 2000 | ||
Min. fork height h | mm | 88 | ||
Max. fork height h1 | mm | 200 | ||
Steering wheel | mm | ? 180x50 | ||
Load roller Single | mm | ?74X93 | ||
Load roller Tandem | mm | ? 74x70 | ||
Size of fork e*s | mm | 178x60 | ||
Width overall forks B | mm | 568 | ||
Fork length I | mm | 1150 | ||
Option of Printer | Power | DC5v,I?1.5A | ||
Port | Serial | |||
Paper |
44.5mm/13/4in(width) x?40mm/1.6in(dia) |
|||
Battery |
DC7.2v,5000mAh (rechargeable battery); |
|||
Charger | AC 110~240V |
- Weighing accuracy kg for load 2000kg
- Pallet truck complete with built in weighing scales
- Strong robust low profile painted frame
- Runs off six rechargeable "D" cell batteries/ or mains
- Battery charger included
- Scales clearly display the weight of the load on the forks
- Four accurate load cells
- Conforms to EN 1757-2
- SAC-W
- Highlight, big font, More clear display With powerful function to conforms to different requirement
- Prolific function with not only the normal weighing, but also the weight checks, counter to conform to different requirement
- Multi-choices for power, the ferronickel and plumbum battery can be charged directly
Roll Pallet Truck
With an assistance of our efficient workforce, we are offering a wide range of Roll Pallet Truck. Compact in design, this truck is widely demanded by our clients for its easy movement of paper rolls from one destination to another. Furthermore, this heavy-duty paper roll pallet truck is composed of a single piece tempered fork that provides it with high strength.
Item/Type | HK / AC20R500 | HK / AC20R700 | HK / AC20R1000 | HK / AC20R1500 | |
Capacity Q | kg | 2000 | |||
Reel diameter | mm | 400-600 | 600-800 | 800-1200 | 1200-1600 |
With overall forks B | mm | 760 | 850 | 1000 | 1150 |
Steering wheel | mm | F200x50 | |||
Load roller Single | mm | F82x93 | |||
Load roller Tandem | mm | F82x70 | |||
Fork length l | mm | 800/900/1000/1100/1150/1220 |
Scissor Lift Pallet Truck
Keeping in mind the diverse requirements of the clients, we offer our clients a comprehensive range of Scissor Lift Pallet Trucks that have high tensile strength and are functionally advanced in nature. Our entire product range is sturdy in construction and is delivered as per the exact requirements of our clients. We are supported by well-developed quality testing department that assists us to deliver exceptional range of products to our clients.
Item/Type | SLT(N)10 | |
Capacity Q | Kg | 1000 |
Min. fork height h | mm | 85 |
Max. fork height h1 | mm | 800 |
Size of fork e*s | mm | 160x50 |
Width of overall fork b5 | mm | 540/680 |
Length of fork l | mm | 1170 |
Fork roller | mm | ?78x60 |
Big wheel | mm | ?200x50 |
Weight | Kg | 125/136 |
- Simple structure ; Good-looking appearance
- One cylinder system guarantees;
- *No risk of oil leakage
- *No risk of dropping to the second piston suddenly
- Newest handle design:
- *Has a nice appearance
- *Operates comfortably.
- *Meets ergonomic requirements
- The quick lift function double lift speed for loads weighing 550 lbs or less
- Built-out battery and charger resulting in a low center of gravity and excellent manoeuvrability.
- Conforms to CE safety standard
- Conforms to EN1757-4
